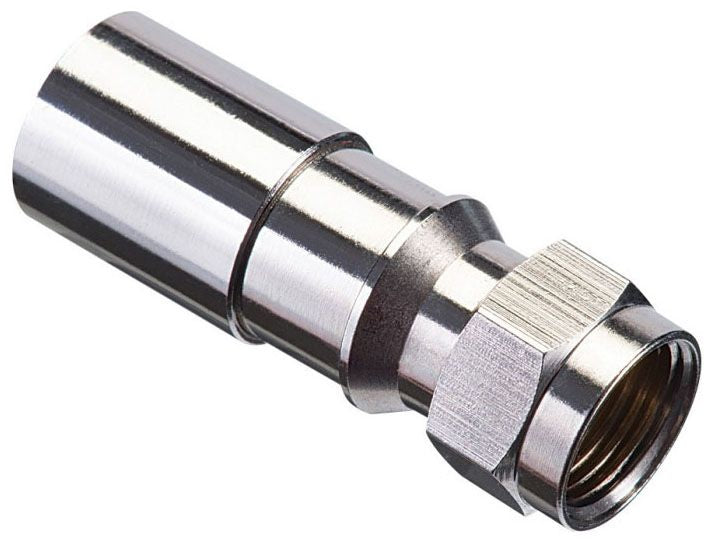

IDEAL Electrical 92-656 Compression Connector

The IDEAL RTQ series of F connectors offers a single connector solution to cover a range of coax types. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors. RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.All RTQ connectors require an industry standard cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal Pro or LinearX compression tool.

Specifications:

Coupling Style: F
Configuration: Straight
Cable Type: RG6 Regular/Tri-Shield/Quad Plenum
Cable Insulation Outer Diameter: 0.226 to 0.31 Inch
Impedance: 75 Ohm
Body Material: Nickel Plated Brass
Standard Package: 100 per Jar
Application: Indoor/Outdoor, Cable, Satellite Television
