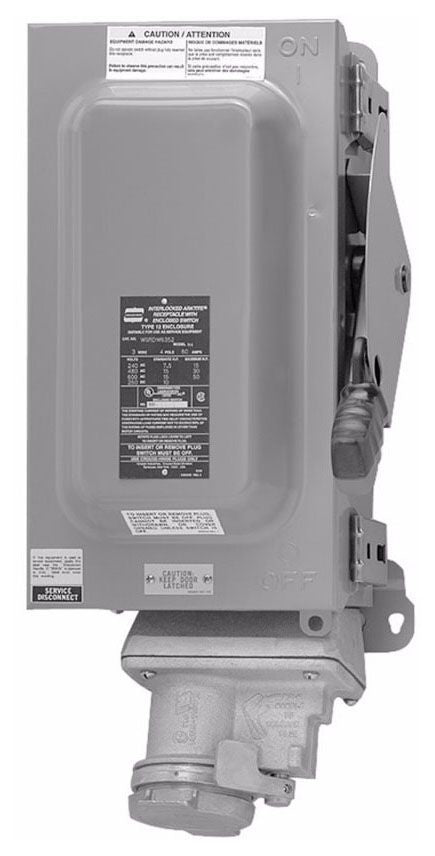

Crouse-Hinds WSRD63542 Pin and Sleeve Receptacle with Disconnect Switch

Made of Krydon fiberglass-reinforced polyester, Crouse-Hinds series Arktite non-metallic plugs, receptacles and connectors are used to supply power to portable electrical devices such as welders, motors, pumps and conveyors. Available in 30A, 60A and 100A, these pin and sleeve devices are ideal for use in non-hazardous areas of chemical plants, sewage treatment facilities, cement plants, pulp and paper, food processing and other industrial facilities.Arktite non-metallic pin and sleeve devices feature an innovative arc-snuffing design that enables large power loads to be disconnected under load without causing an arc flash in the area

Specifications:

Type: Mechanically Interlocked
Constructional Feature: Corrosion Resistant, Raintight, Watertight
Voltage Rating: 600 VAC/250 VDC
Current Rating: 60 Ampere
Number of Poles: 4
Number of Wires: 3
Door Type: Hinged Spring Door, Gasketed
Fuse Provision: Non-Fusible
Hub Type: 1-1/4 Inch
Grounding Style: 2, Shell, Extra Pole
Material: Baked Gray Enamel Sheet Steel Enclosure
Enclosure: NEMA 3R/12
