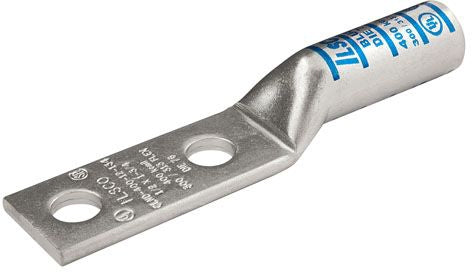

Ilsco CLND-1000-12-134 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 1000 KCMIL
Barrel Type: Long, Straight
Barrel Length: 3 Inch
Pad Size: 3 Inch Length x 2.169 Inch Width x 0.328 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: White
Die Index: I-125
Material: Electro Tin Plated High Strength Seamless Copper
Overall Length: 7.025 Inch
Approval: UL 453G/467/486A/B, CSA
