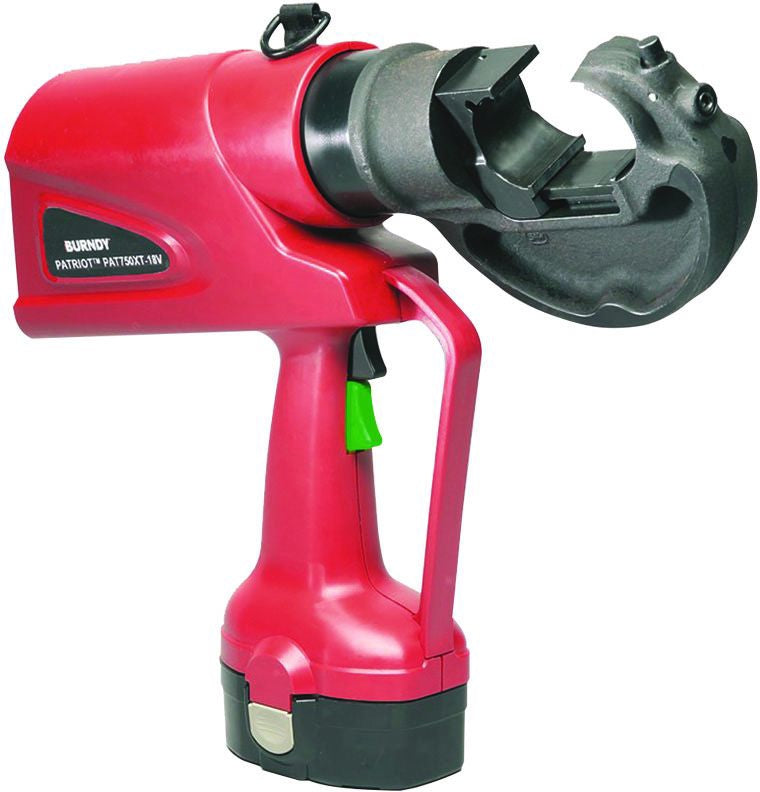

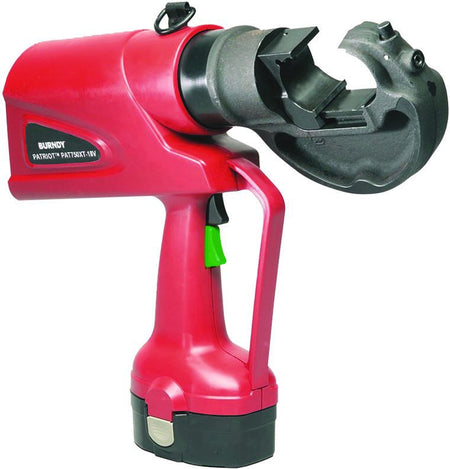

Burndy PAT750XT18V Battery Actuated Crimping Tool

Out of stock
SKU: 172192
Regular price $5,575.41

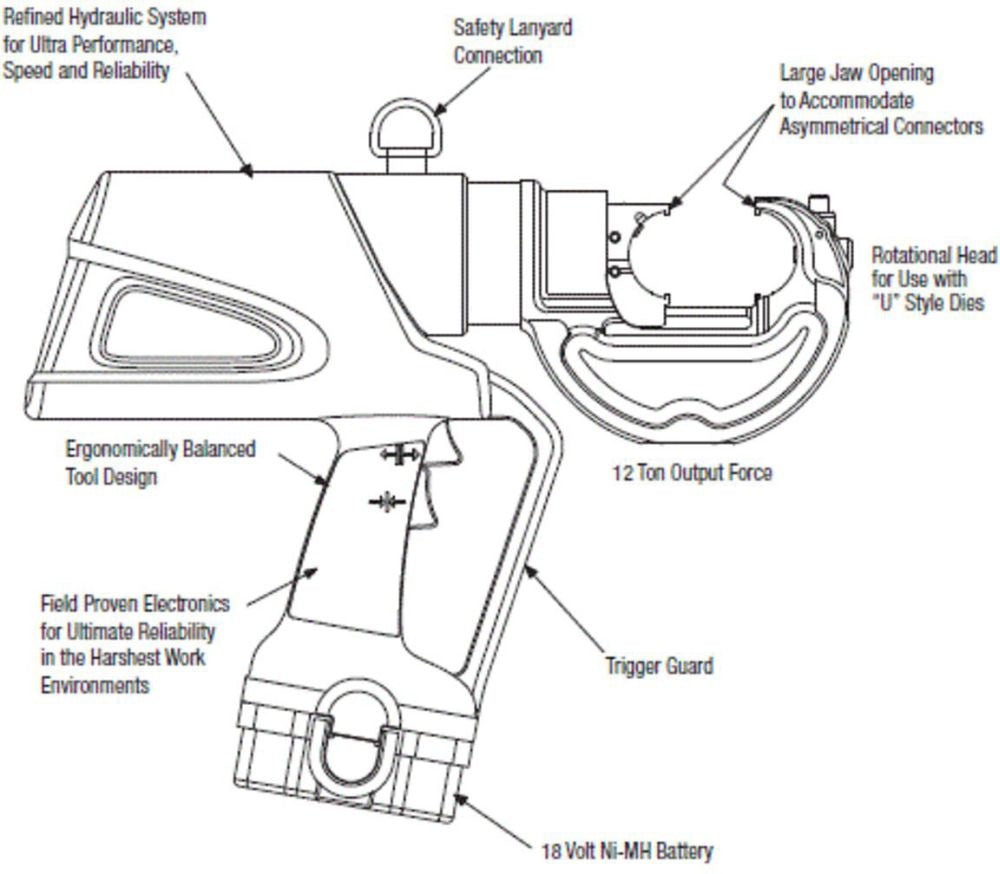

C-Head with 1.65 Inch Jaw Opening; 355 Degree Head Rotation; Uses U Dies; Ergonomic Design and Overmolded Handle for Comfort Grip; Patented T-Track Alignment Guide for Hyground as Well as other Asymmetrical Connectors; ​RoHS Compliant​; Lifetime Warranty on Infinity Drive


Crimping Force: Rotatable 355 Degree
Head Type: Rotatable 355 Degree
Die Options: U Die
Die Included: Yes
Terminal/Splice Type: Splice, Tap, Tension Sleeve, Terminal
Cable Size: 8 AWG to 750 KCMIL (Aluminum, Terminal/Splice), 4 AWG to 556 KCMIL (ACSR, Terminal/Splice), 8 AWG to 750 KCMIL (Copper, Terminal/Splice)
Battery Type: 18 V Nickel Metal Hydride
Battery Charger Type: 120 VAC
Size: 15.75 Inch L x 3.5 Inch W x 13.5 Inch H
