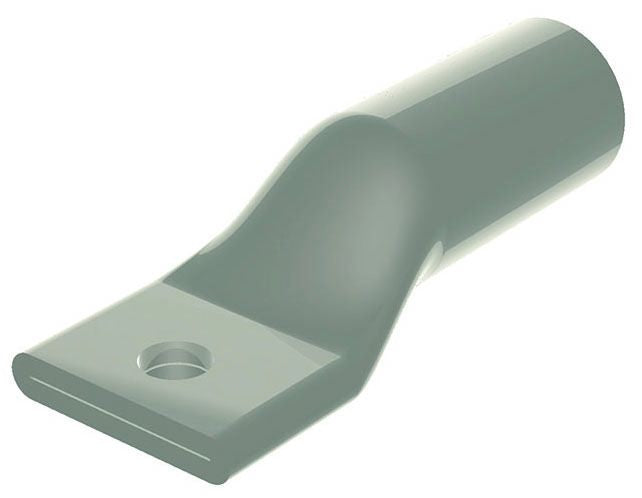

Burndy YA8CA3 Compression Terminal
Regular price
$10.64
Couldn't load pickup availability
Type YA-A aluminum tin-plated compression HYLUG terminals are dual-rated and designed for use on both aluminum and copper conductors from #12 solid thorugh 2000 kcmil.
Specifications:
Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 8 AWG (Aluminum), 8 AWG Stranded (Copper)
Barrel Type: Standard, Straight
Barrel Length: 0.62 Inch
Pad Size: 0.53 Inch W x 0.09 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/4 Inch
Color: Blue
Die Index: 374
Material: Electro-Tin Plated Wrought Aluminum
Overall Length: 1.65 Inch
Approval: UL 468A/468B, CSA
