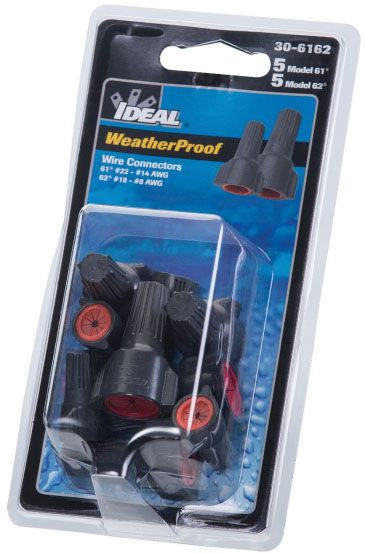

IDEAL Electrical 30-6162 Wire Connector

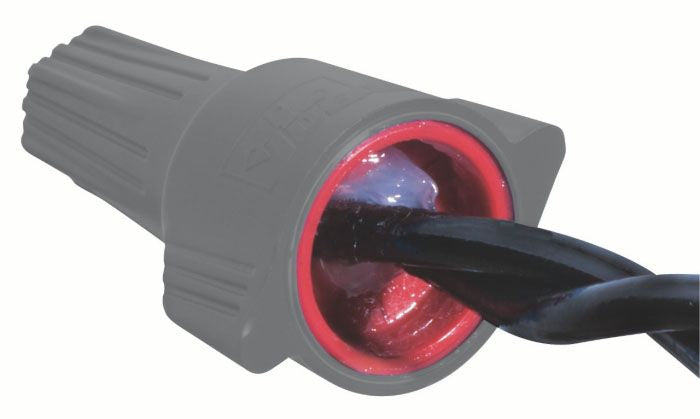

100% Silicone Based Sealant Protects Against Moisture and Corrosion; Easy to Apply, Pre-Filled Twist-On Wire Connectors; Swept Wing Design is Built for Comfort and Efficiency; Eliminates the Need for Heat-Shrink or Excessive Taping; Tough, UL 94V-2 Flame-Retardant Shell Rated at 105 Deg C (221 Deg F); For Use in Damp/Wet Location or Above Grade Applications; RoHS Compliant

Specifications:

Type: Swept Wing
Voltage Rating: 600 Volt, 1000 Volt (Fixture/Sign)
Wire Type: Copper
Wire Size: 22 to 14 AWG, 18 to 8 AWG
Minimum Wire Combination Size: (2) #20, (3) #18
Maximum Wire Combination Size: (2) #14, (2) #10 with (1) #14
Spring Type: Square Wire, Live Action
Shell Material: Thermoplastic Polyester
Color: Gray/Orange, Gray/Red
Temperature Rating: 105 Deg C
Standard Package: 10 per Card
Approval: UL 486C/D, CSA C22.2, CE
