Burndy K4A31U4N Mechanical Cable Terminal Lug
Regular price
$156.64
Couldn't load pickup availability
These Dual-Rated One-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; For Aluminum and Copper Conductors
Specifications:
Number of Conductors: 4
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 350 KCMIL Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated Aluminum Alloy
Number of Pad Holes: 4

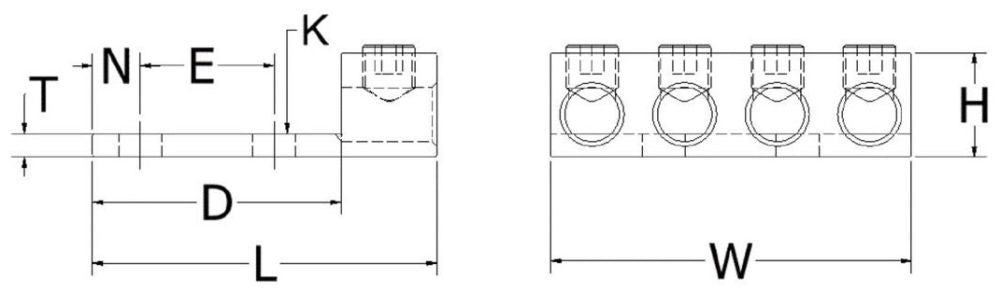

Pad Size: 4.72 Inch Width x 0.31 Inch Thickness
Stud Size: 1.75 Inch
Overall Length: 4.5 Inch
Approval: UL 467, CSA
