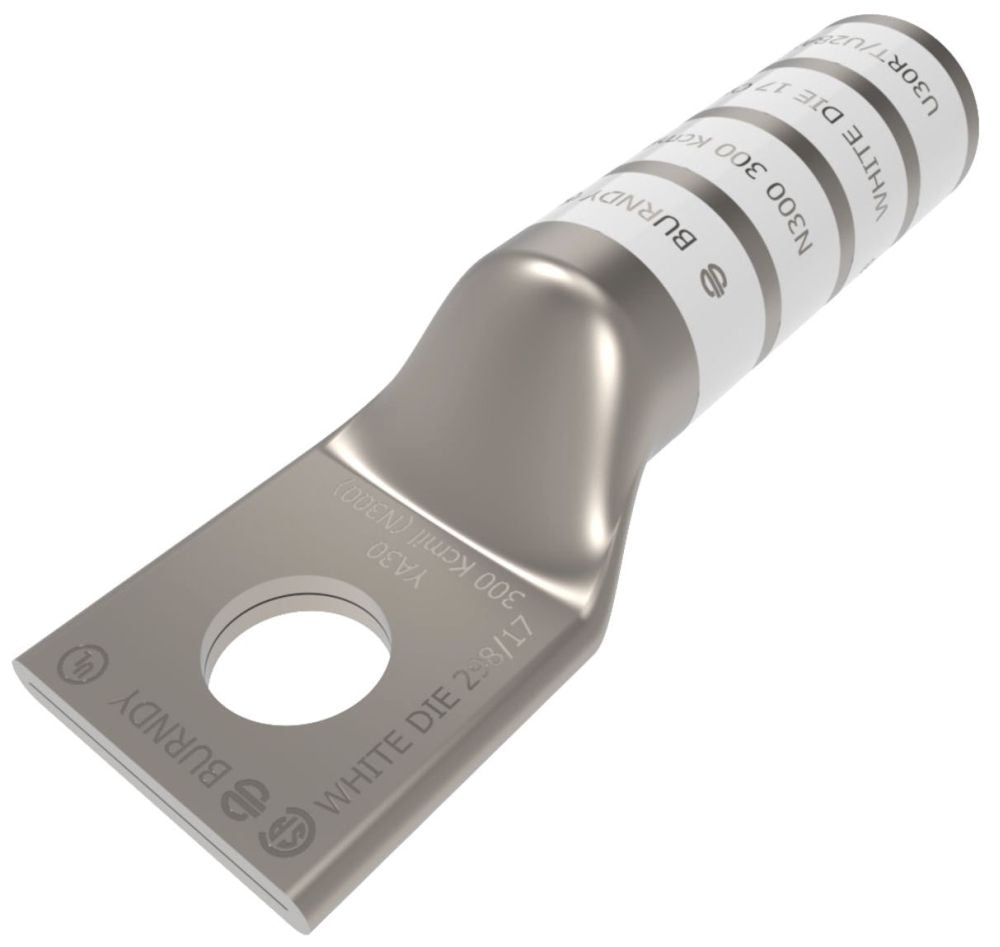

Burndy YA30 Compression Cable Lug

Out of stock
SKU: 172967
Regular price $25.89

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection


Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 300 KCMIL Stranded
Barrel Type: Long, Straight
Barrel Length: 2 Inch
Pad Size: 1.2 Inch Width x 0.16 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: White
Die Index: 17/298
Material: Electro-Tin Plated Copper
Overall Length: 3.69 Inch
Approval: UL 468A/B, CSA
