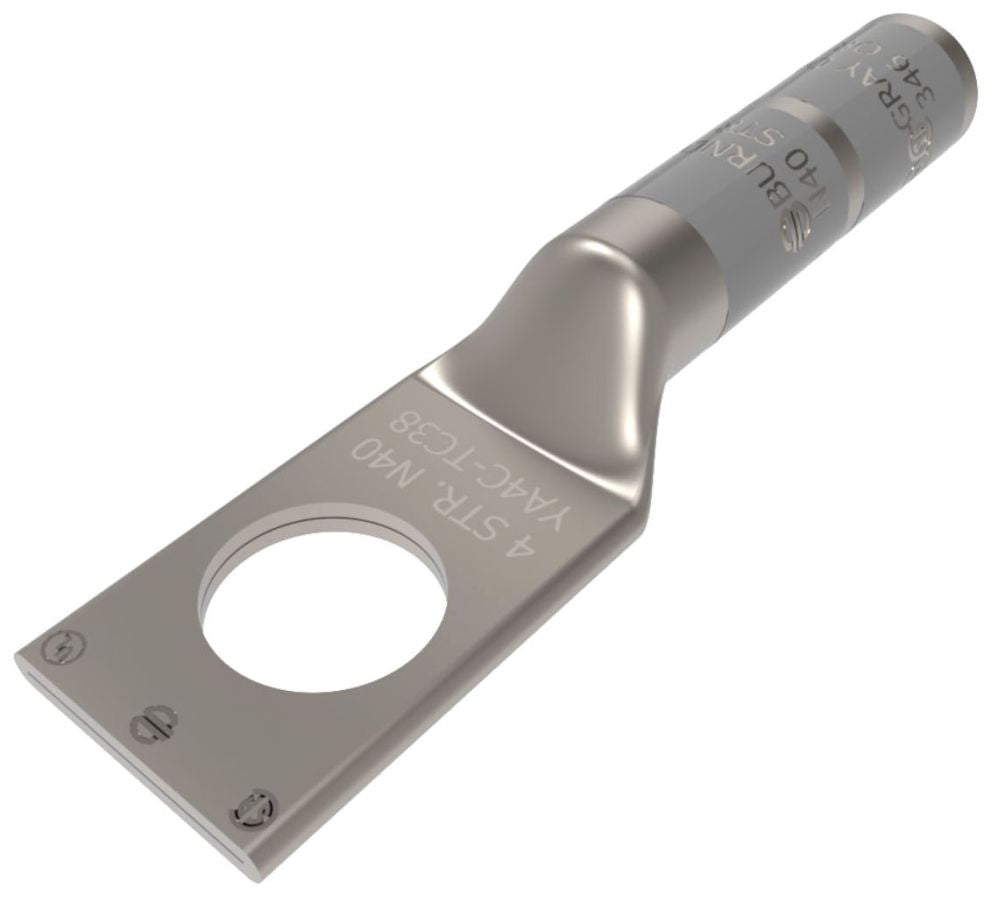

Burndy YA4CN Compression Cable Lug

Out of stock
SKU: 172968
Regular price $12.62
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 4 AWG Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 1.12 Inch
Pad Size: 0.83 Inch Width x 0.12 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Gray
Die Index: 8/346
Material: Electro Tin Plated Copper
Overall Length: 2.69 Inch
Approval: UL, CSA
