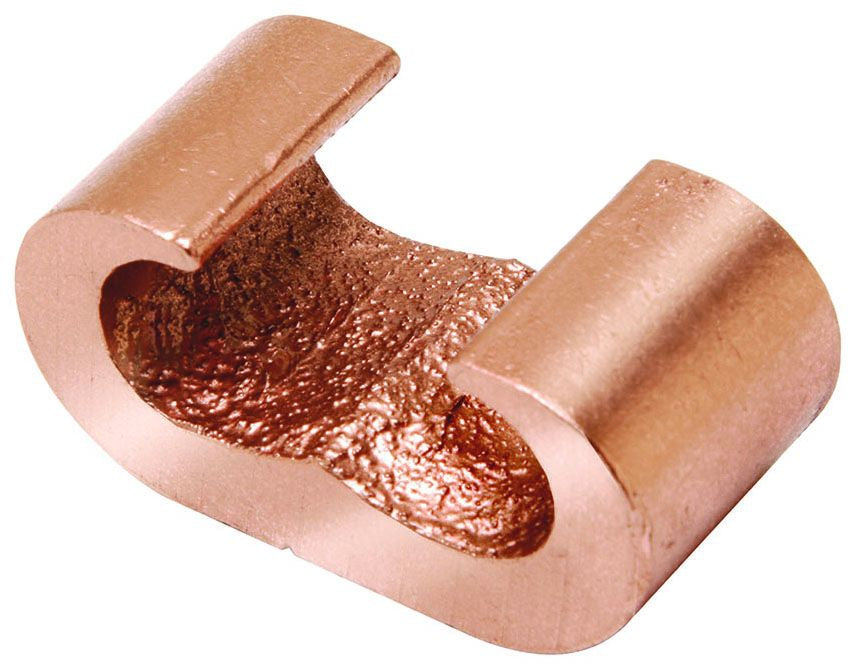

Burndy YGHC29C29 Compression Ground Tap Connector
Regular price
$48.33
Couldn't load pickup availability
C Shaped Opening Permits Placing Two Continuous Parallel Cables into Conductor Groove; Acceptable for Direct Burial in Earth or Concrete; Pre-Filled with Penetrox Compound and Strip Sealed; RoHS Compliant
Specifications:
Shape: C
Conductor Material: Copper
Minimum Run Conductor Size: 3/0 AWG Stranded
Maximum Run Conductor Size: 250 KCMIL
Minimum Tap Conductor Size: 3/0 AWG Stranded
Maximum Tap Conductor Size: 250 KCMIL
Die Index: 997
Body Material: Copper
Approval: UL 96/467, CSA
