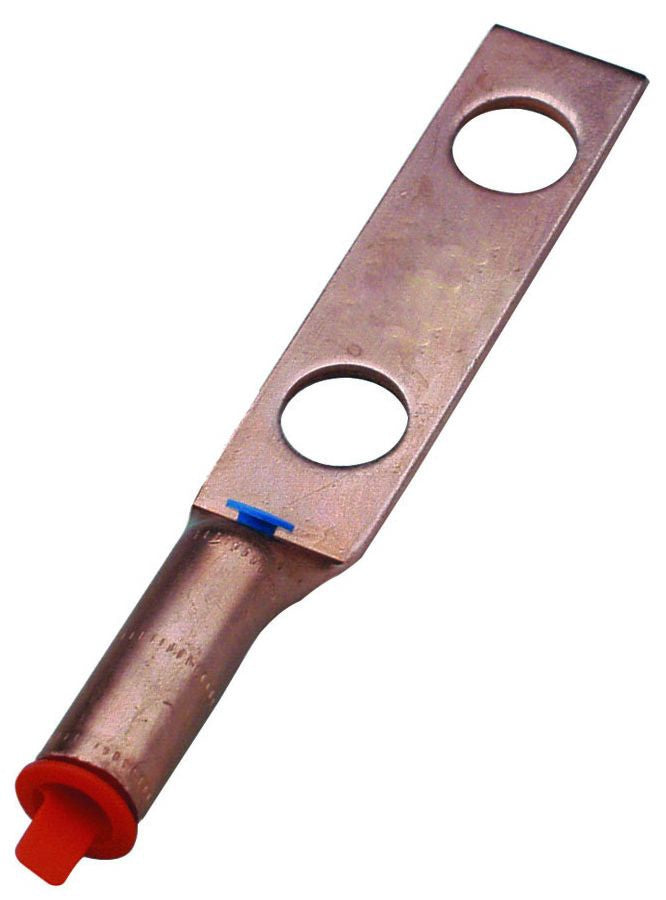

Burndy YGA28-2N Grounding Irreversible Compression Terminal
Regular price
$34.05
Couldn't load pickup availability
Irreversible compression HYLUG ground terminal specifically designed for grounding applications. Each connector has an inspection probe hole to ensure proper cable insertion. UL467 Listed. Acceptable for direct burial in earth or concrete.

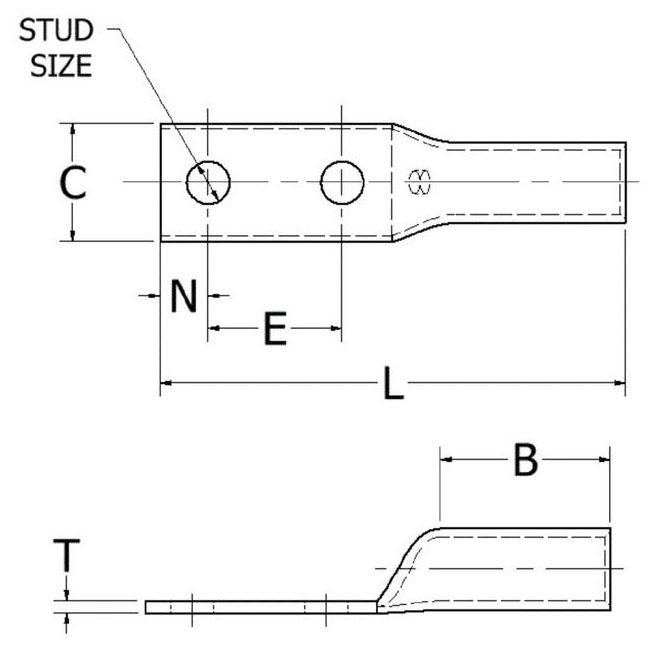

Specifications:
Conductor Material: Copper
Conductor Size: 4/0 AWG Stranded
Barrel Type: Long, Straight
Barrel Length: 1.57 Inch
Pad Size: 1 Inch W x 0.14 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Die Index: 15
Material: Copper
Overall Length: 5.17 Inch
Approval: UL 467/486A, CSA
