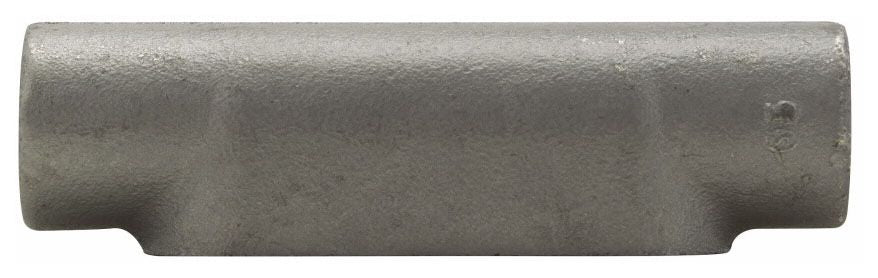

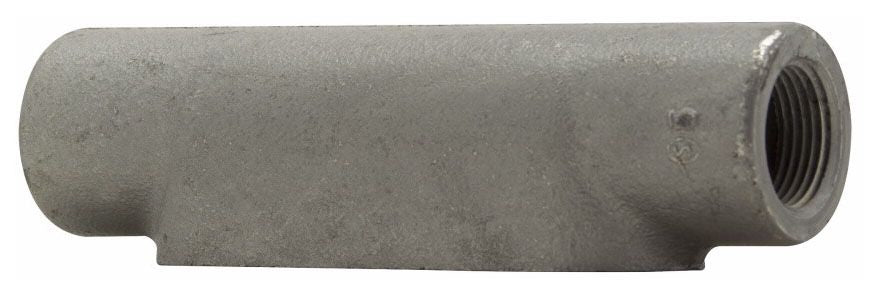

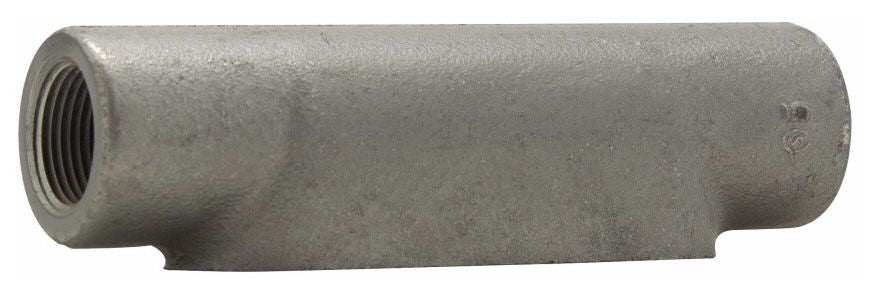

Crouse-Hinds C27 Rigid Conduit Body

One hundred years after the introduction of the Condulet, Eaton's Crouse-Hinds Division remains the leader in conduit outlet bodies. The line has grown to six families manufactured in a variety of materials, and Form 7 bodies are offered in 11 different shapes to provide the most flexible offering on the market. Form 7 Condulet outlet bodies approach conduit in size for neat, compact installations. Many shapes and sizes are available for rigid threaded conduit. Our Form 7 family features an exclusive Snaptight and wedge nut cover attachment for an unobstructed cover opening, and an integrally gasketed cover saves customers inventory and labor costs. Form 7 is available as components or pre-packaged in various configurations as a SnapPack assembly.

Specifications:

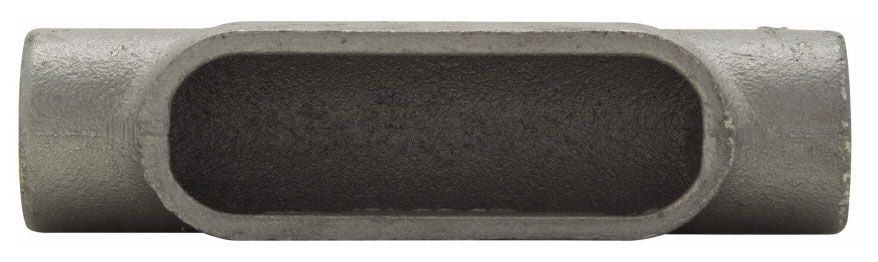

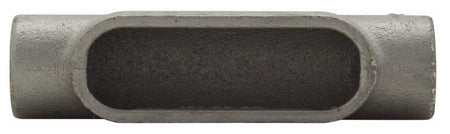

Access Opening: Side
Configuration: C
Cover Type: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy, Stainless Steel Cover Screw, Snap Tight, Wedge Nut
Hub Location: Straight
Number of Hubs: 2
Hub Size: 3/4 Inch
Size: 6 Inch Length x 1-9/16 Inch Width x 1-5/8 Inch Height
Installation: Threaded
Material: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body)
Form Type: Form 7
Approval: UL 514B/50E, CSA C22.2
Used On: Rigid Conduit
