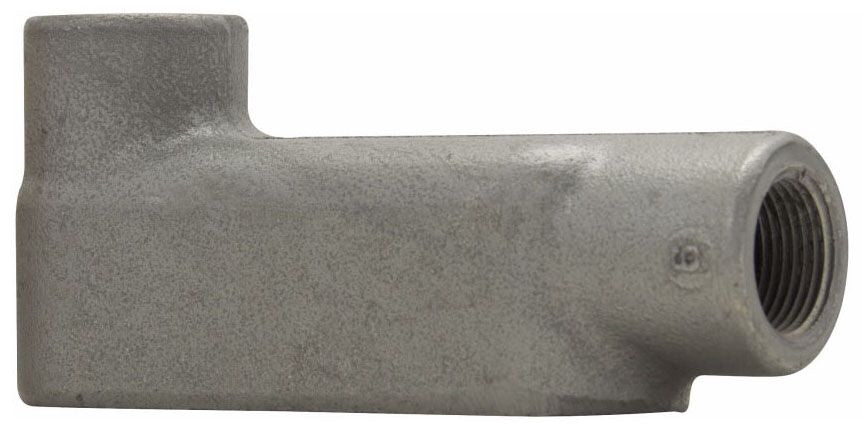

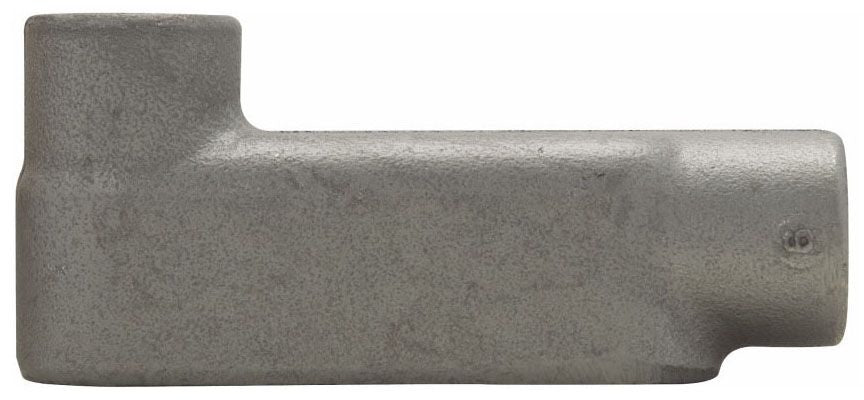

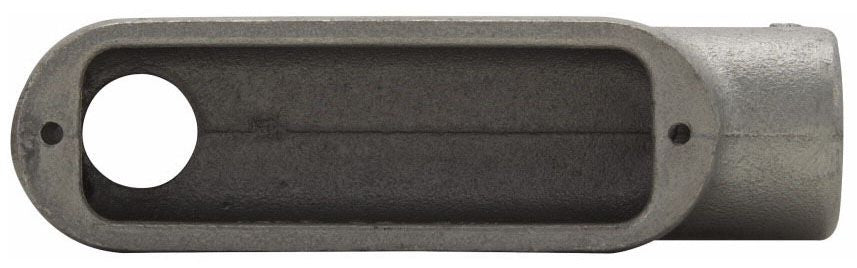

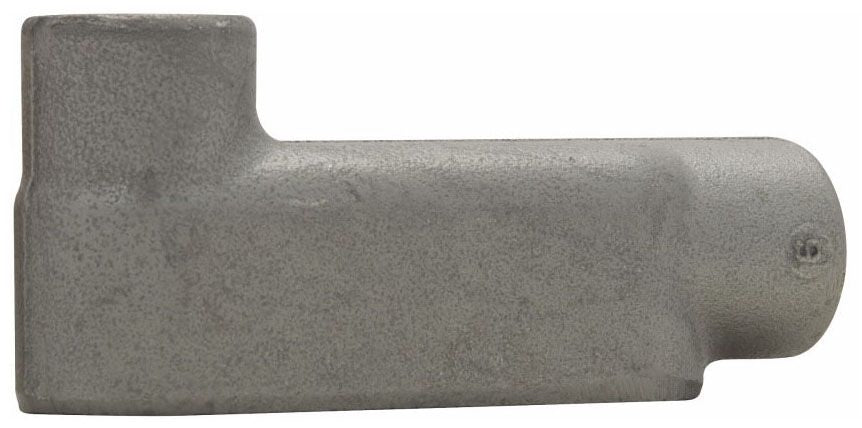

Crouse-Hinds LB28 Rigid Conduit Body

One hundred years after the introduction of the Condulet, Eaton's Crouse-Hinds Division remains the leader in conduit outlet bodies. The line has grown to six families manufactured in a variety of materials, and Form 8 bodies are offered in seven different shapes to provide the most flexible offering on the market. Form 8 Condulet outlet bodies provide more room for heavier conductors. Many shapes and sizes are available for rigid threaded conduit. Two cover screws on all body sizes provide tight cover and gasket assembly, and the Feraloy iron alloy covers have dome shapes for added strength and extra wiring room. In addition to iron alloy, Form 8 bodies are available in stainless steel for superior resistance to corrosion and heat.

Specifications:

Access Opening: Back
Configuration: LB
Cover Type: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy, Stainless Steel Cover Screw
Hub Location: 90 Degree
Number of Hubs: 2
Hub Size: 3/4 Inch
Size: 5-9/16 Inch Length x 1-9/16 Inch Width x 2-7/16 Inch Height
Installation: Threaded
Material: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body)
Form Type: Form 8
Approval: UL 514B/50E, CSA C22.2
Used On: Rigid Conduit
