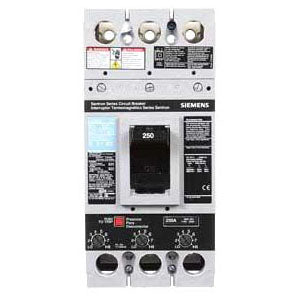

Circuit Breakers are UL Listed for Reverse Feed Applications; UL Rated for Use on 500 Volt DC Ungrounded UPS Systems; HACR Rated; RoHS Compliant

Specifications:

Type: Thermal Magnetic, Non-Interchangeable Trip
Frame Type: FD
Voltage Rating: 600 Volt AC at 50/60 Hertz, 500 Volt DC
Maximum AC Voltage Rating: 600 Volt
Maximum DC Voltage Rating: 500 Volt
Current Rating: 250 Amp at 40 Deg C
Number of Poles: 3
Interrupting Rating: 22 Kiloamp at 600 Volt AC, 18 Kiloamp at 500 Volt DC
Size: 4.5 Inch Width x 4 Inch Depth x 9.5 Inch Height
Approval: UL 489, CSA C22.2, CE, Federal Specification Class 20A
