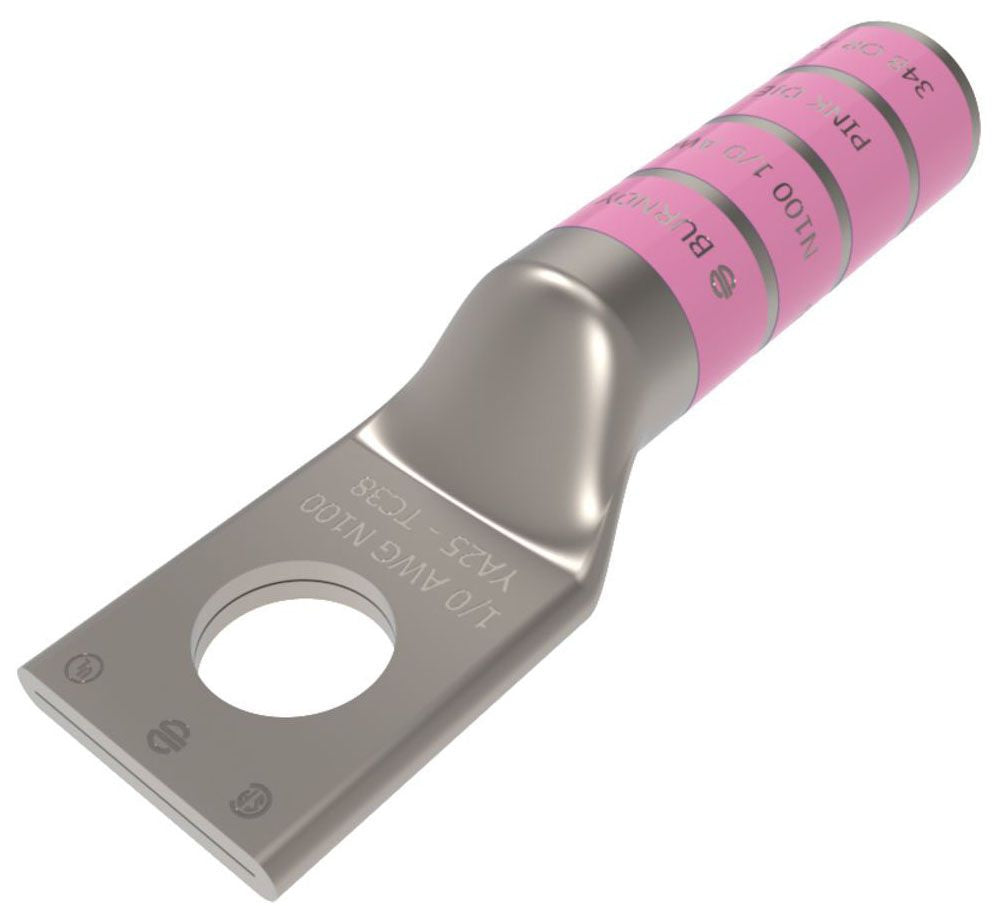

Burndy YA25TC38 Compression Cable Lug

Out of stock
SKU: 176428
Regular price $11.91
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 1/0 AWG Stranded (Code)
Barrel Type: Long, Standard, Straight
Barrel Length: 1.38 Inch
Pad Size: 0.75 Inch Width x 0.12 Inch Thickness
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Pink
Die Index: 12
Material: Electro Tin Plated Copper
Overall Length: 2.61 Inch
Approval: UL 467, CSA
