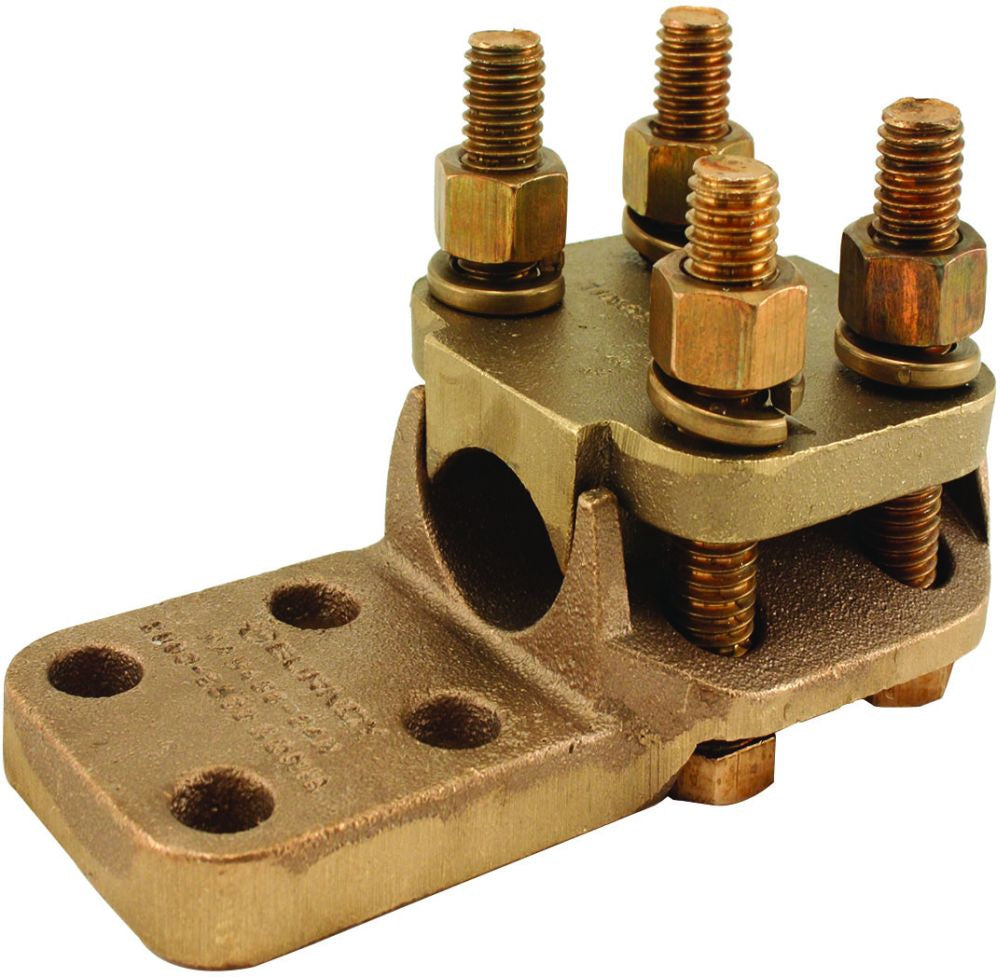

Burndy NAH292N Substation Cable Bolted Terminal
Regular price
$56.18
Couldn't load pickup availability
Copper Alloy Terminal for Joining a Wide Range of Cable to Equipment Pads; Tongue is Side Formed to Provide Adequate Clearance and Terminal is Designed for 1-Wrench Installation
Specifications:
Conductor Material: Copper
Number of Conductors: 1
Minimum Conductor Size: 6 AWG Solid/Stranded
Maximum Conductor Size: 250 KCMIL Stranded, 4/0 AWG Solid
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Pad Size: 3 Inch L x 1.5 Inch W x 0.25 Inch Thk
Stud Size: 0.56 Inch
Overall Length: 5.88 Inch
Material: Copper Alloy
