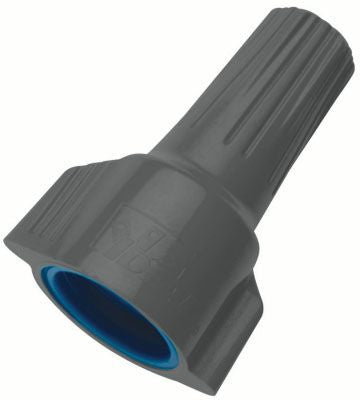

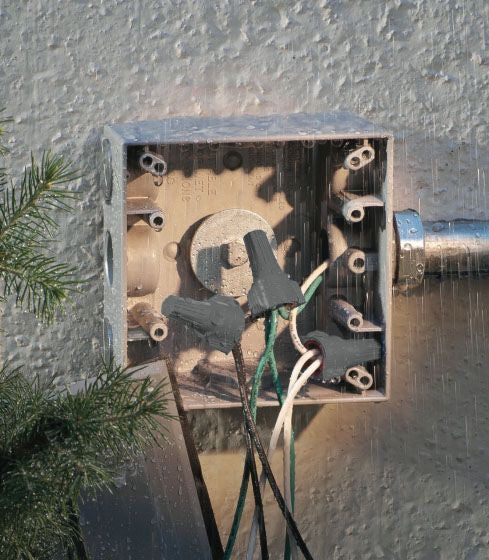

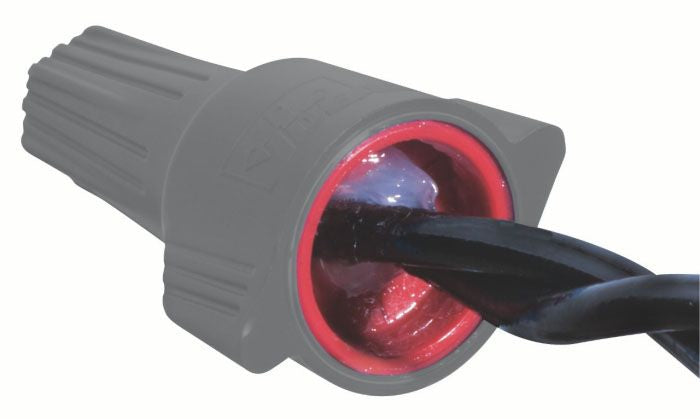

Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements. The swept-wing design makes the connector easy and comfortable to apply, while the pre-filled, silicone-based sealant protects against moisture and corrosion, eliminating the need for heat-shrink or excessive taping. WeatherProof Wire Connectors feature tough, flame-retardant shells that withstand most rugged environmental extremes and are listed to UL 486G for use in damp or wet locations that are above ground.Due to the pre-filled silicone sealant, WeatherProof Wire Connectors are designed as a one-use only connection.

Specifications:

Type: Swept Wing
Voltage Rating: 600 V
Wire Type: Copper
Wire Size: 16 to 6 AWG
Minimum Wire Combination Size: (3) #14
Maximum Wire Combination Size: (5) #10
Color: Gray/Dark Blue
Temperature Rating: 105 Deg C
Standard Package: 50 per Jar
Approval: UL 486D, CSA, CE
