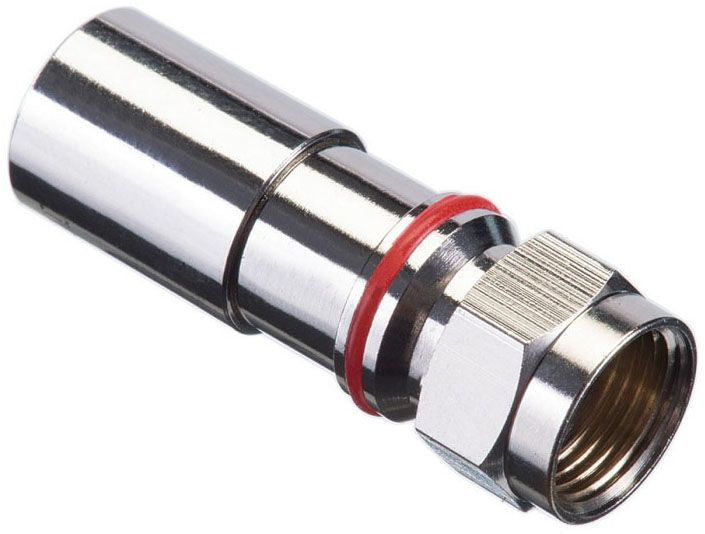

IDEAL Electrical 92-611 Compression Connector

Out of stock
SKU: 178276
Regular price $116.22

The IDEAL RTQ series of F connectors offers a single connector solution to cover a range of coax types. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors. RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.All RTQ connectors require an industry standard ¼” x ¼” cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal Pro or LinearX compression tool.


Coupling Style: F
Configuration: Straight
Cable Type: RG59 Reg/Tri/Quad
Cable Insulation Outer Diameter: 0.23 to 0.27 Inch
Body Material: Nickel Plated Brass
Standard Package: 10 per Card
Application: Satellite, Cable TV
