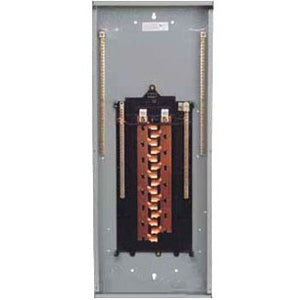

Siemens PW4040L1200CU Main Lug Load Center
Regular price
$288.81
Couldn't load pickup availability
Convertible; Invertible; Insta-Wire Neutrals and Ground; Copper Busbar; Dual Neutrals on All Configuration; Ground Bars Included
Specifications:
Type: Main Lug, Convertible
Voltage Rating: 120/240 Volt AC
Current Rating: 200 Ampere
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 40
Maximum Number of Spaces: (40) 1 Inch
Main Breaker Type: MBK150A, MBK200A
Interrupting Rating: 100 Kiloampere
Neutral Type: Bonded, Groundable
Bus Material: Copper
Feed Location: Bottom
Enclosure Type: NEMA 3R, Outdoor
Cover Type: Flush/Surface, Slide Hinge Door
Enclosure Size Designation: 3R
Size: 14-1/2 Inch Width x 4-1/4 Inch Depth x 38 Inch Height
Approval: UL
