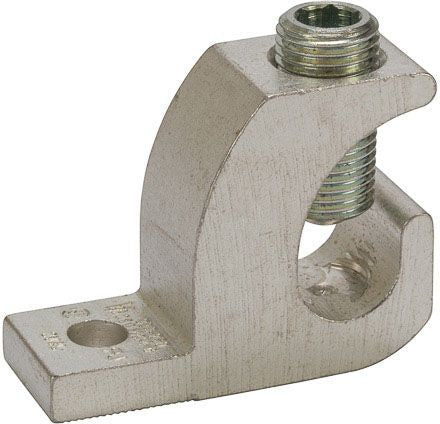

Lay-In Connectors Offer the Ultimate in Flexibility; Excellent for Grounding and Continuous Loop Applications; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Type: Lay-In
Number of Conductors: 1
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 250 KCMIL
Conductor Material: Copper/Aluminum
Pad Type: Straight
Screw Type: 0.25 Inch Hex Socket
Material: Aluminum
Number of Pad Holes: 1
Pad Size: 0.8 Inch Width x 0.3 Inch Thickness
Stud Size: 0.33 Inch
Overall Length: 2.2 Inch
Approval: UL (Canada and US), UL 467/486A
