3M 2104A Electrical Insulating Resin

  • Sale
  • Regular price $20.54
Shipping calculated at checkout.

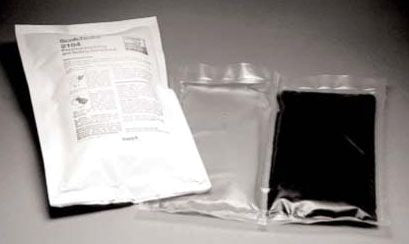

Scotchcastâ„¢ Electrical Insulating Resin 2104 is a Hard, Two-Part, Polyurethane Resin Encapsulates Designed Specifically for Permanent Splice Protection; Resin is Formulated for Virtually Every Electrical Application Requiring Hard, Non-Reenterable Resin with Good Handling and Performance Characteristics; Resin is also Used as the Insulating Material for Cable Splices Operating at 1000 Volts or Less and is Rated for Continuous Use at 194 Deg F (90 Deg C) with an Overload Rating of 266 Deg F (130 Deg C); It May be Stocked to Cover All Hard Resin Needs, Ending the Need for Multiple Encapsulates Inventories; Bonds to All Modern Cable Jackets; Low Viscosity; RoHS Compliant

Specifications:

Item: Electrical Insulating and Sealing Compound
Voltage Rating: 1000 Volt
Material: Polyurethane
Energize Time: Immediate
Color: Dark Green
Operating Temperature: 194 Deg F
Quantity: 3.46 Ounce
Standard Package: 10 per Case
Used On: 72-N/85 Series Splice Cable Kit
