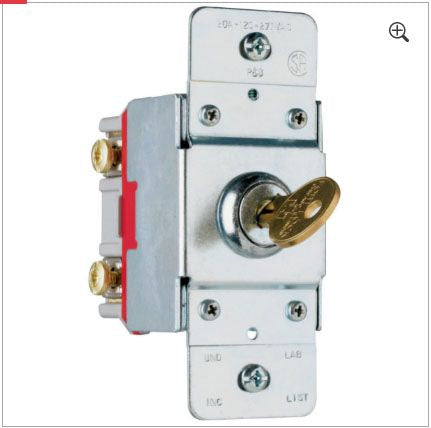

Pass & Seymour PS20AC1KL Locking Security Switch

  • Sale
  • Regular price $108.84
Shipping calculated at checkout.


Back and Side Wired; Accepts #14 - #10 AWG; Operated by Cam Lock for Maximum Security in Critical Areas; Recommended for Tamper-Proof Installation in Schools, Public Housing, Trailer Parks, Freight Yards, Etc; Uses Same Key as Cat.# 4600 Cast Enclosure; Key can be Removed in Both Positions

Specifications:

Type: Key Cam Lock
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1 HP and 2 HP
Operation Type: 1-Pole
Material: Stainless Steel (Housing)
Wiring: Back, Side
Size: 1.32 Inch Width x 1.073 Inch Depth x 3.281 Inch Height
Wall Plate Included: No
Application: Industrial, Extra Heavy Duty, Specification Grade
Approval: UL 498, CSA C22.2
