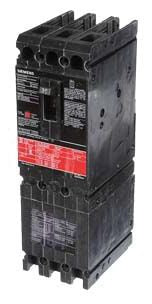

ED Frame Molded Case Circuit Breakers are Supplied with Load Side Lug

Specifications:

Type: Thermal and Fixed Magnetic, Fuseless Current Limiting
Number of Poles: 3
Voltage Rating: 600 VAC at 50/60 Hz, 500 VDC
Current Rating: 60 Ampere at 40 Deg C
Interrupting Rating: 100 Kiloampere at 600 VAC, 30 Kiloampere at 500 VDC
Terminal Type: Load Lug
Mounting: Plug-In
Used On: Panelboard
Size: 3 Inch W x 4.56 Inch D x 9.58 Inch H
Approval: UL 489
