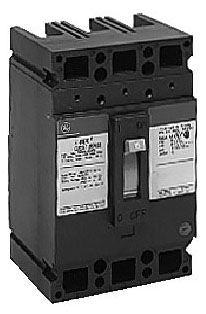

ABB GE Industrial Solutions TED134070WL Industrial Molded Case Circuit Breaker
Couldn't load pickup availability
The E150 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC; Catalog Numbers Include the Complete Breaker or Switch; The WL Catalog Number Suffix Indicates that the Devices Come with Cu/Al Line and Load Lugs; All TED Breakers Suitable for Reverse Feed
Specifications:
Type: Molded Case, Thermal Magnetic
Frame Type: E150
Voltage Rating: 480 Volt AC
Maximum AC Voltage Rating: 480 Volt
Maximum DC Voltage Rating: 250 Volt
Current Rating: 70 Amp
Number of Poles: 3
Interrupting Rating: 18 Kiloamp at 120/240 Volt AC
Terminal Type: Copper/Aluminum Line and Load Lug
Size: 2-3/4 Inch Width x 3-3/8 Inch Depth x 6-5/16 Inch Height
Approval: UL, CSA
