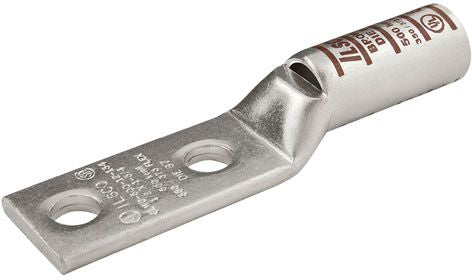

Ilsco CLWD-6-12-134 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 6 AWG
Barrel Type: Long
Barrel Length: 1.125 Inch
Pad Size: 3 Inch L x 0.75 Inch W x 0.087 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Blue
Die Index: I-24
Material: Seamless Electro-Tin Plated Copper
Overall Length: 4.32 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
