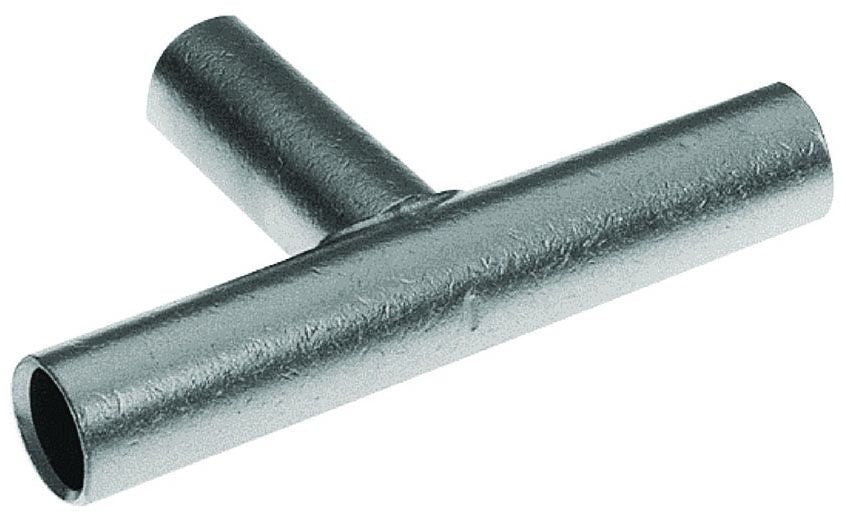

Type YST copper compression tee is designed for connecting a run conductor with a perpendicular tap conductor. Type YST connectors are commonly used in junction boxes and manholes to make a radial tap off a main run. They are needed in many industrial, utility generation, and commercial applications. The most common cable combinations are listed below. The Type Y-R reducers can also be used to accommodate most cable combinations.

Specifications:

Type: T
Voltage Rating: 600 V to 35 KV
Conductor Size: 4/0 AWG Run, 4/0 AWG Tap
Conductor Material: Copper

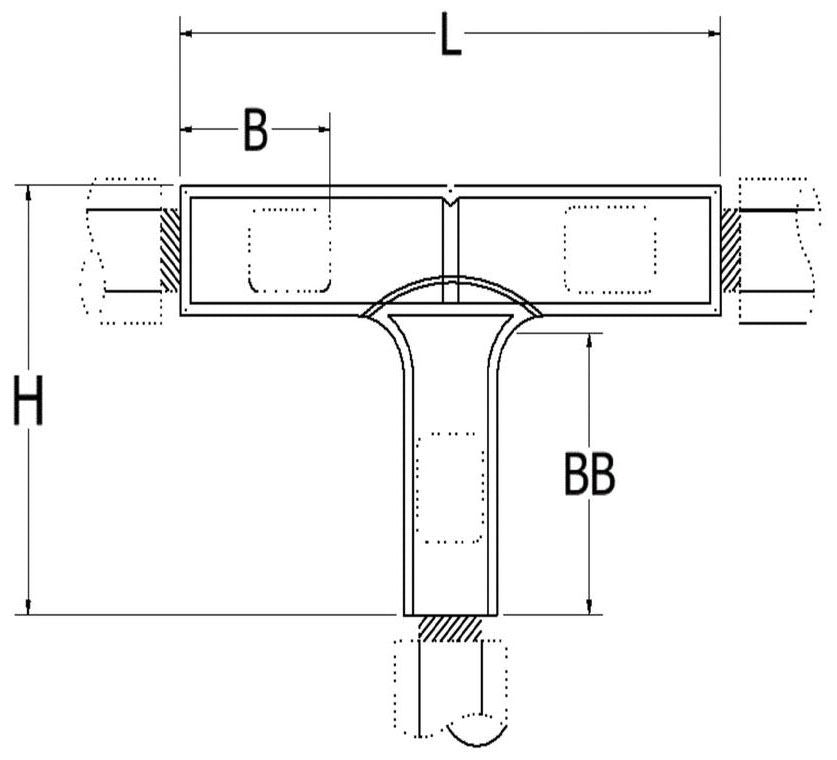

Size: 4.19 Inch L x 2.44 Inch H
Material: Electro-Tin Plated Copper
Approval: UL, CSA
