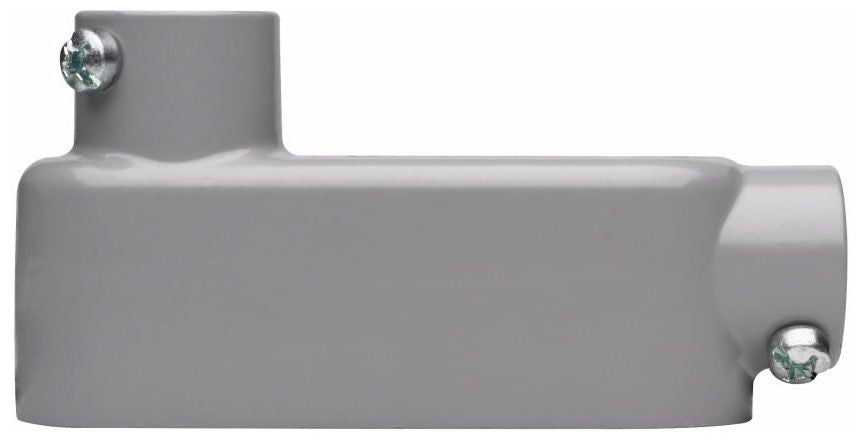

Crouse-Hinds LB45-CGN IMC/Rigid Conduit Outlet Body

Eaton's Crouse-Hinds Division Series 5 die cast copper-free aluminum conduit bodies, covers and gaskets are available for use with rigid or EMT conduit (with set screw). Conduit bodies are available in trade sizes 1/2" to 4", in the most popular conduit body shapes (C, LB, LL, LR, T) and 1/2" to 2" in TB and X shapes. The Series 5 family is available as components or pre-packaged in various configurations as a SnapPack assembly. In addition, Series 5 is completely interchangeable with other manufacturers.

Specifications:

Access Opening: Back
Configuration: LB
Cover Type: Natural Aluminum, Screw
Hub Location: 90 Degree
Number of Hubs: 2
Hub Size: 1-1/4 Inch
Size: 7.79 Inch Length x 2.49 Inch Width x 3.5 Inch Height
Installation: Threaded
Material: Epoxy Powder Coated Die-Cast Copper-Free Aluminum (Body), Stainless Steel (Screw), Natural Neoprene (Gasket)
Form Type: Series 5
Approval: UL, CUL
Used On: Rigid/IMC Conduit
