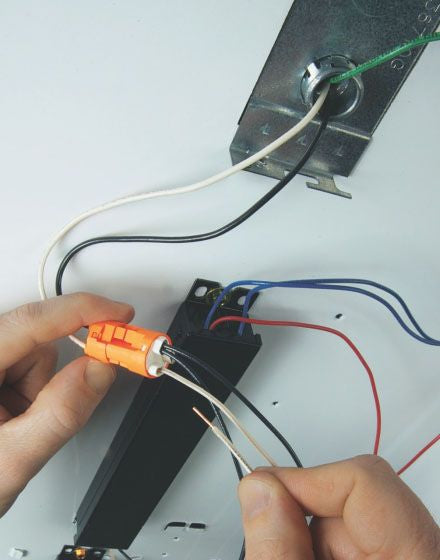

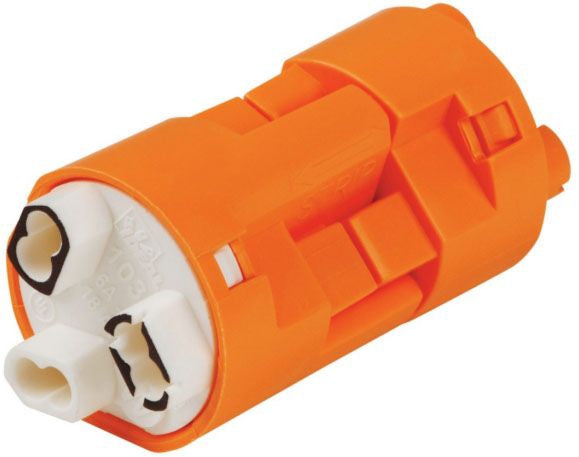

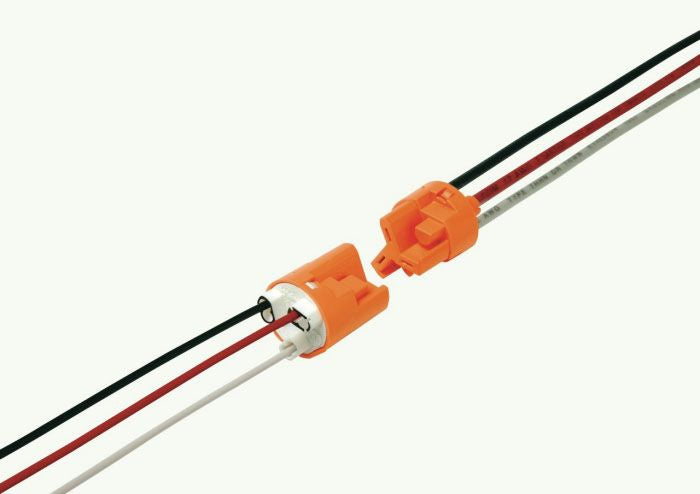

The IDEAL PowerPlug Luminaire Disconnect fully meets the current National Electric Code and Canadian Electric Code for non-residential fluorescent luminaires. The PowerPlug helps reduce electrical shock hazard during ballast replacement by safely disconnecting hot and neutral ballast wiring. Both halves of PowerPlug meet UL and CSA finger-probe safety requirements. Advanced push-in technology provides fast, efficient ballast connections resulting in reduced installation time and improved labor savings. The PowerPlug is available in 2-pole and 3-pole models with options for new installation or ballast retrofitting.

Specifications:

Voltage Rating: 600 V
Wire Size: 18 to 12 AWG (Solid), 14 to 12 AWG (Stranded)
Number of Ports: 3
Color: Orange
Temperature Rating: 221 Deg F
Standard Package: 20 per Card
Approval: UL 2459, CSA C22.2
