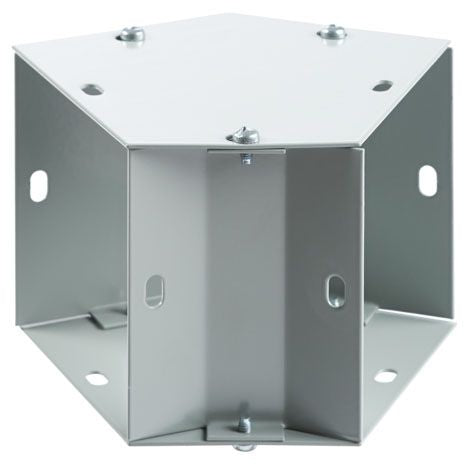

Hoffman Enclosures F44G45E Wireway Elbow
Regular price
$51.10
Couldn't load pickup availability
Lay-In Painted 45-Degree Elbows are Used for Continuous Run with 45-Degree Turns; Top and Inside Cover Removable So Wires and Cabless Can be Laid in Along Wireway Run; No Pulling Through of Wires or Cables Prevents Damage to Insulation that Often Occur in a Pull-Through Wiring System
Specifications:
Type: Top and Inside Opening
Wireway Type: Lay-In
Cover Type: Flat, Hinged, Screw
Bend Angle: 45 Degree
Width: 4 Inch
Height: 4 Inch
Material: 16/14 Gauge Steel (Body/Cover)
Finish: ANSI 61 Gray Polyester Powder Painted
Enclosure: NEMA 1, IP30
Approval: UL 870, CUL, CSA C22.2
