Cover Interlock; Tangential Knockouts Through 600 Amp for Easy Conduit Lineup; Quick-Make, Quick-Break Operating Mechanism that Ensures Positive Operation; Generous Wiring Gutters that Meet or Exceed NEC Wire-Bending Space Requirements; Visible Blade, Double-Break Switch Action; Positive 2 or 3 Point Mounting; Highly Visible Red Handle Grip Informative Door Labeling Which Includes Replacement Parts List; Handle and Cover Padlocking Provisions; Side-Hinged Door that Opens 180 Degrees for Easier Wiring; A Unique Enclosure Design that Adds Rigidity and Strength; Its Rolled Edge Prevents Cuts and Scrapes to Conductors and to Installer's Hands

Specifications:

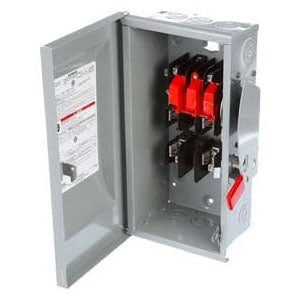

Type: General Duty Safety
AC Voltage Rating: 240 Volt
DC Voltage Rating: 250 V
Current Rating: 60 Ampere
Power Rating: 3 HP at 240 Volt AC 1-Phase, 7-1/2 HP at 240 Volt AC 3-Phase, 10 HP at 250 Volt DC (Standard), 10 HP at 240 Volt AC 1-Phase, 15 HP at 240 Volt AC 3-Phase (Maximum for Time Delay Fuse)
Number of Poles: 2
Number of Wires: 3
Fuse Provision: Fusible
Fuse Type: Class H/K/R, Time Delay
Neutral Type: Solid
Enclosure: NEMA 1
Size: 8.7 Inch Width x 8.63 Inch Depth x 15.45 Inch Height
Approval: UL
