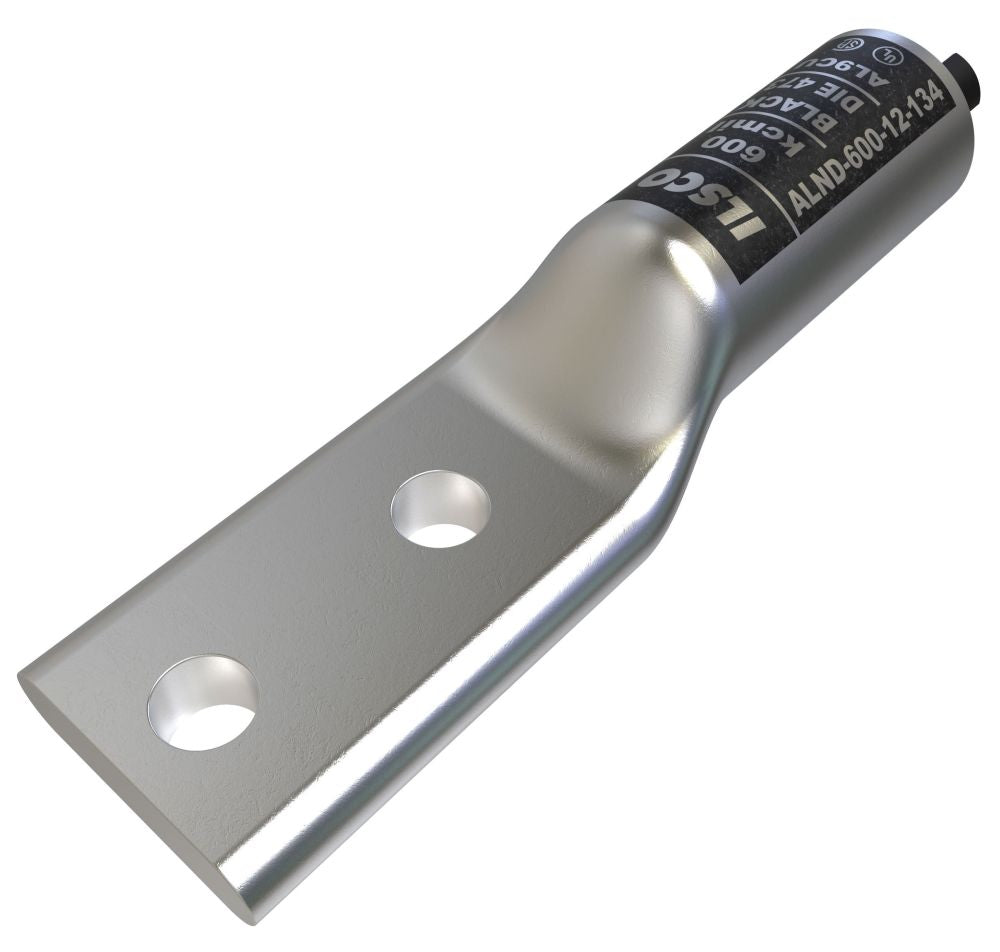

Ilsco ALND-600-12-134 Compression Cable Lug

Manufactured from High Strength Aluminum Alloy; Electro-Tin Plated; Chamfered Entry; Color Coded End Cap; Two Bolt Hole Pattern; Pre-Filled with De-Ox Oxide Inhibiting Compound; Range Taking; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Dual Rated Al9Cu to 90 Deg C; Offers Maximum Conductivity and Excellent Crimping Characteristics; Provides Low Contact Resistance; for Easy Conductor Insertion; Identifies the Proper Compression Die; For Easy identification and Proper Location of Crimps; Provides Maximum Surface Contact, Secure Attachment and Stabilization; Prevents Oxides from Forming and Promotes Connector Longevity; Permits Inventories to be Kept to a Minimum; Versatility; RoHS Complaint

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 600 KCMIL
Barrel Type: Long
Barrel Length: 2.685 Inch
Pad Size: 3.15 Inch L x 1.965 Inch W x 0.52 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Black
Die Index: 475
Material: Electro-Tin Plated Aluminum Alloy
Overall Length: 6.973 Inch
Approval: UL 453G, UL 486A/B, CSA
