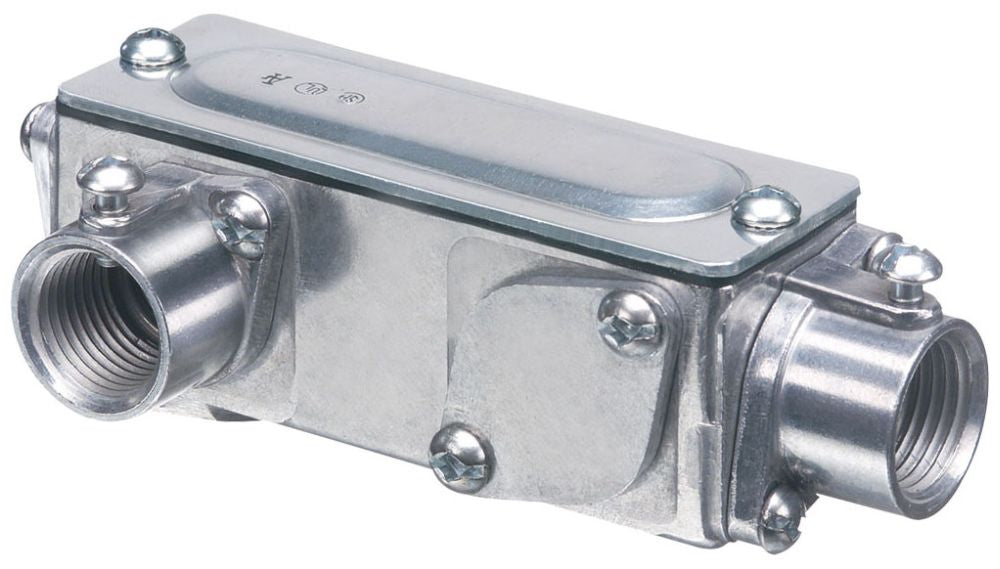

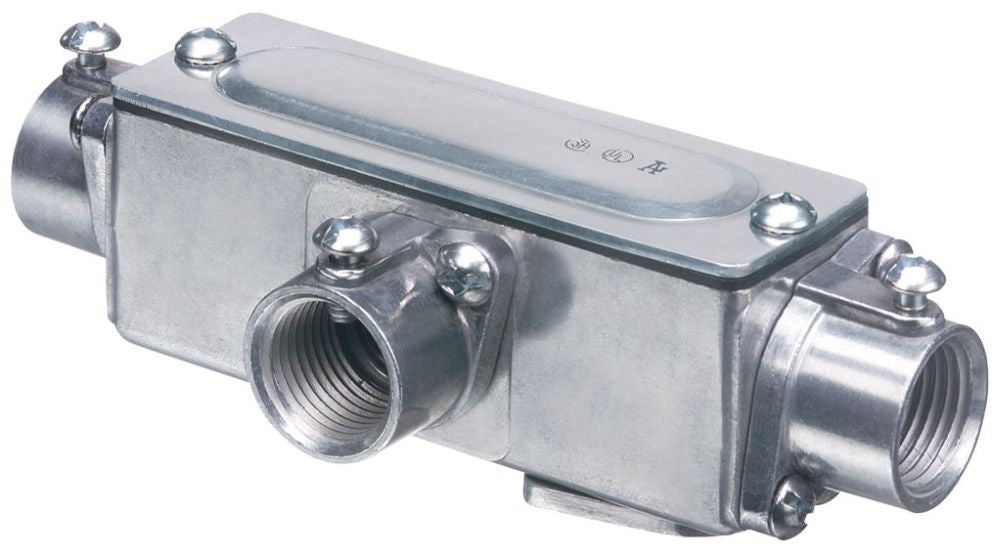

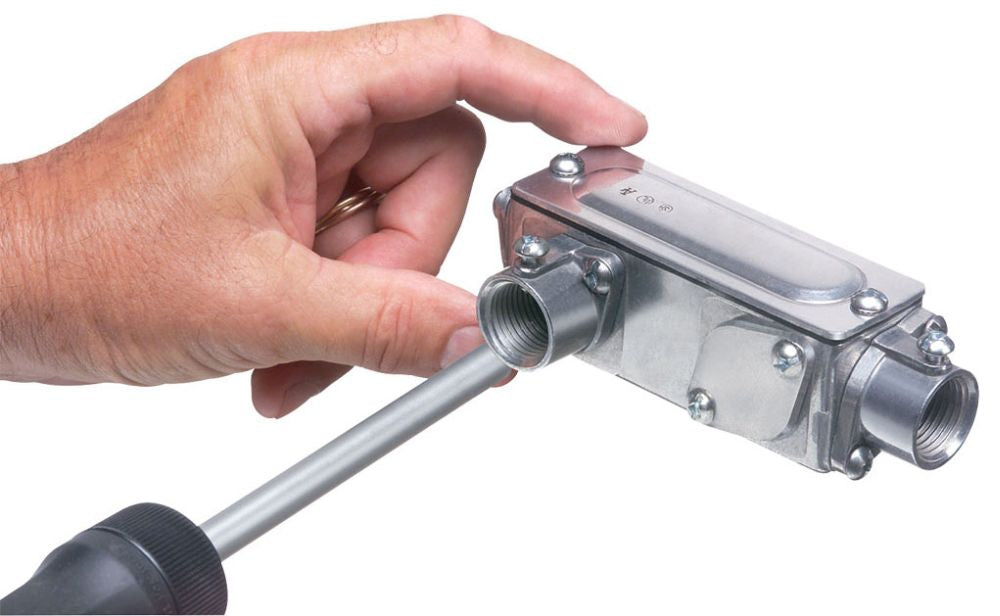

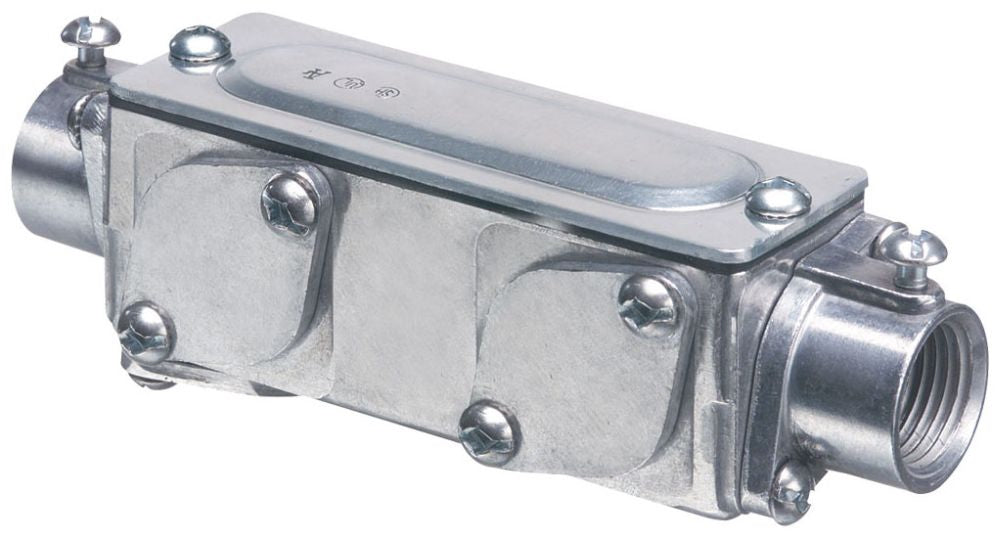

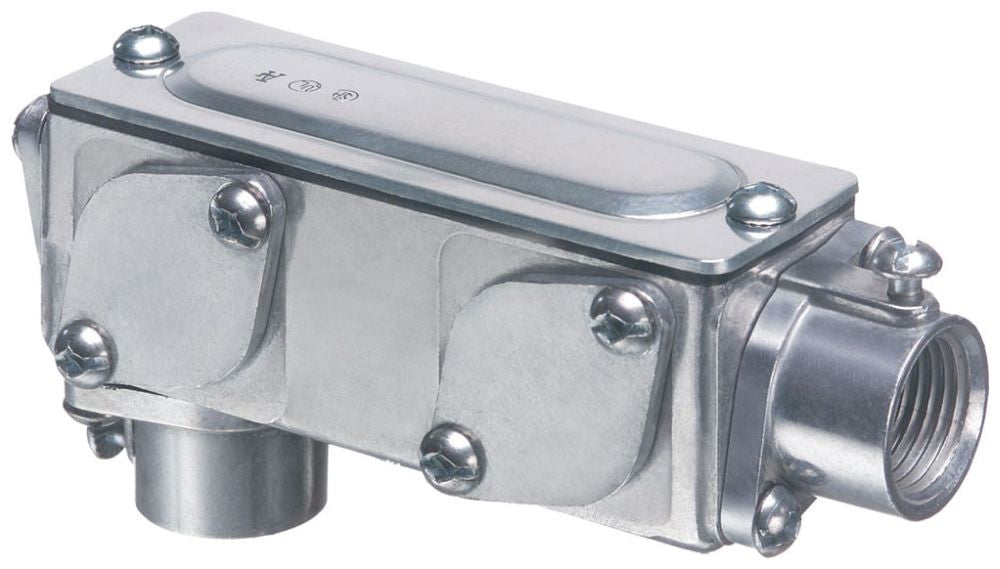

Arlington Industries 931 Conduit Body

Meets NEC 2014 Section 314.16 Paragraph (C) (2) for Conduit Bodies with Splices, Taps or Devices; Convenient and Easy to Use; Saves the Time, Space and Cost of Stocking Five Different Conduit Bodies (LB, T, LL, LR, C); 1/2 to 2 Inch Sizes are Combination EMT/Rigid they are Threaded for Rigid, But Also Have a Set-Screw for Use with EMT; Volume and Wire Fill Marked Inside Bodies; Recessed O-Rings Under Covers and Flanges

Specifications:

Access Opening: Back
Configuration: LB
Cover Type: Die-Cast Copper Free Aluminum
Hub Location: 90 Degree
Number of Hubs: 2
Hub Size: 3/4 Inch
Size: 5.64 Inch Length x 2.02 Inch Width x 2.77 Inch Height
Installation: Set Screw (EMT), Threaded (IMC/Rigid)
Material: Die-Cast Copper-Free Aluminum
Approval: UL, CSA
Used On: Rigid/IMC/EMT Conduit
