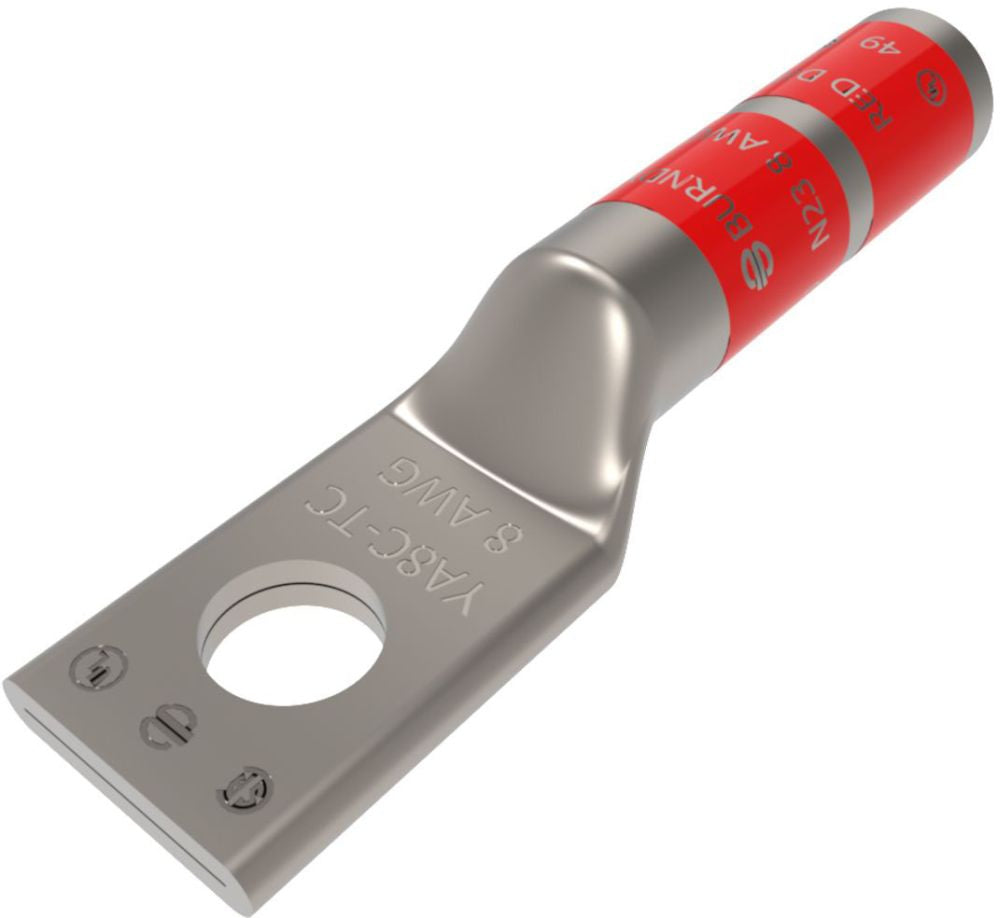

Burndy YA8CTC14 Compression Cable Lug

Out of stock
SKU: 183572
Regular price $5.04
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 8 AWG (Stranded), 6 AWG (Solid)
Barrel Type: Long, Standard, Straight, Chamfered Entry
Barrel Length: 0.81 Inch
Pad Size: 0.44 Inch Width x 0.08 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/4 Inch
Color: Red
Die Index: 49
Material: Electro Tin Plated Copper
Overall Length: 1.69 Inch
Approval: UL 467, CSA
