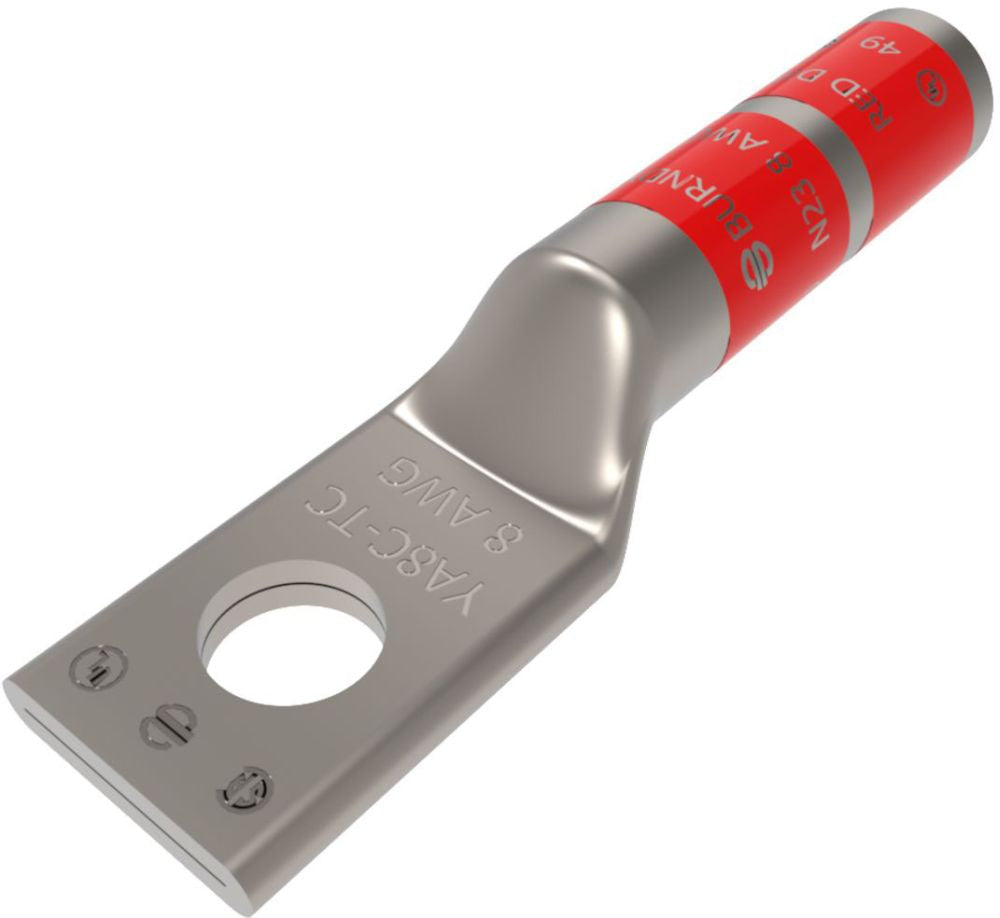

Burndy YA8CTC38 Compression Cable Lug

Out of stock
SKU: 183573
Regular price $4.87

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection


Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 37/24, 8 AWG (Weld), 6 AWG Solid, 8 AWG Solid/Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 0.81 Inch
Pad Size: 0.58 Inch W x 0.06 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Red
Die Index: 49
Material: Electro-Tin Plated Copper
Overall Length: 1.88 Inch
Approval: UL 467, CSA
