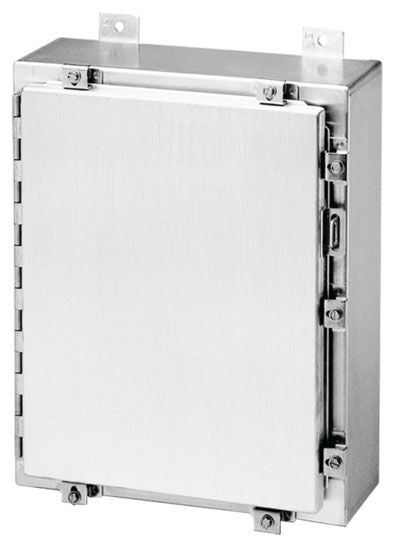

Hoffman Enclosures A16H1608ALLP Wall Mount Enclosure

The Continuous Hinge Aluminum Enclosure with Clamps is a lightweight, Type-4X solution that features a hinged cover that secures on the three, non-hinged sides via stainless steel clamps and screws. This enclosure is ideal for protection of components and controls in highly-corrosive indoor or outdoor environments such as petrochemical processing plants, sewage treatment plants, and marine environments.

Specifications:

Type: 1-Door
Height: 16 Inch
Width: 16 Inch
Depth: 8 Inch
Material: Aluminum
Material Specification: 5052 H-32
Finish: Smooth Brushed
Cover Type: Continuous Hinge with Removable Pin, Clamp, Gasketed, Padlockable Hasp and Staple
Back Panel: A16P16, A16P16G, A16P16AL
Enclosure: NEMA 3R/4/4X/12/13, IP66
Mounting: Wall
Service Type: Indoor/Outdoor
Approval: UL 508A, CUL, CSA C22.2
