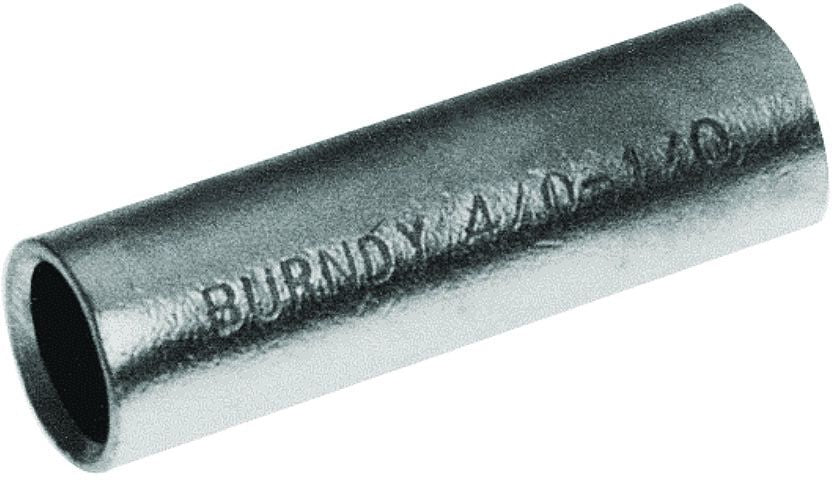

Type Y-R reducing adapter has been designed to allow large size, long barrel, copper HYDENT, HYSPLICE, and HYTEE terminals, splices and T-taps to be used on small conductor sizes. To use, simply insert the reducer into the barrel, insert the wire into the reducer adapter and crimp the outer barrel using its recommended tooling.

Specifications:

Type: Reducing Adapter
Voltage Rating: 600 V to 35 KV
Conductor Material: Copper
Side A Conductor Size: 500 KCMIL
Side B Conductor Size: 4/0 AWG Stranded
Outer Diameter: 0.821 Inch
Length: 2.5 Inch
Material: High Conductivity Electrolytic Tin Plated Copper
