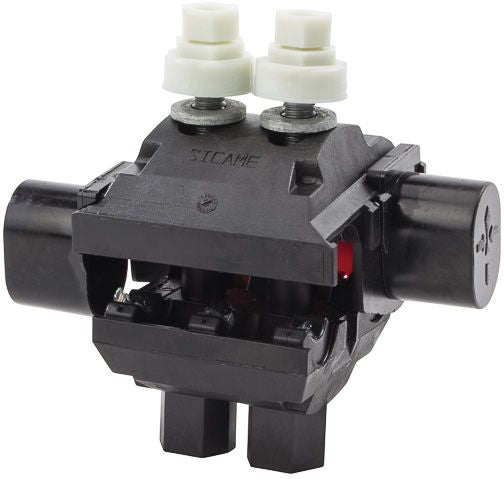

NSi Industries IPCS3535 Insulation Piercing Connector

Out of stock
SKU: 18538
Regular price $70.07
OR

Safe to Use Versatile and Reliable; No Need to Strip Wire and Totally Insulated; No Tape or Cover Needed; No Contact at any Point with a Live Part; Can be Installed on Energized Conductors; No Spacer Required Between Connections; Exclusive "Turbo Spacer" Keeps Tap Side Open While Main Conductor is Being Tightened; No Need for a Third Hand to Install; Water Tight and Corrosion-Free; Connection Sealed by a Rubber Grommet; No Migration of Water; No Contamination Between Main and Tap; Double Shear-Head Bolts Ensure Perfect Connection Every Time Hot Spots Eliminated; Can be Used as a Splice or a Tap; For Copper-to-Copper, Copper-to-Aluminum and Aluminum-to-Aluminum Applications; Suitable for Solid and/or Stranded Wires

Specifications:

Voltage Rating: 600 Volt
Wire Type: Aluminum/Copper
Wire Size: 1/0 AWG to 350 KCMIL (Wire), 1/0 AWG TO 350 KCMIL (Tap)
Connection Type: Splice, Tap
Color: Black
Temperature Rating: 90 Deg C
Standard Package: 2
Approval: UL 486B
