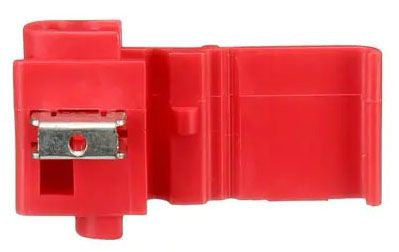

Scotchlok 558-BOX Electrical Wire IDC Connector

  • Sale
  • Regular price $0.37
Shipping calculated at checkout.


Electrically Connects a (Tap) Wire End to a through (Run) Wire and Insulates the Connection; Designed for Control Circuit Wiring, Fixture Wiring, Appliance Wiring, Signal and Pa Systems and Automotive/Boat/Rave Wiring; RoHS Compliant; Made in USA

Specifications:

Voltage Rating: 600 Volt
Wire Size: 22 to 16 AWG (Tap) Solid/Stranded
Connection Type: Run and Tap
Maximum Insulation: 0.12 Inch Outer Diameter
Color: Red
Temperature Rating: 105 Deg C
Standard Package: 1000 per Case
Approval: UL, CSA C22.2
