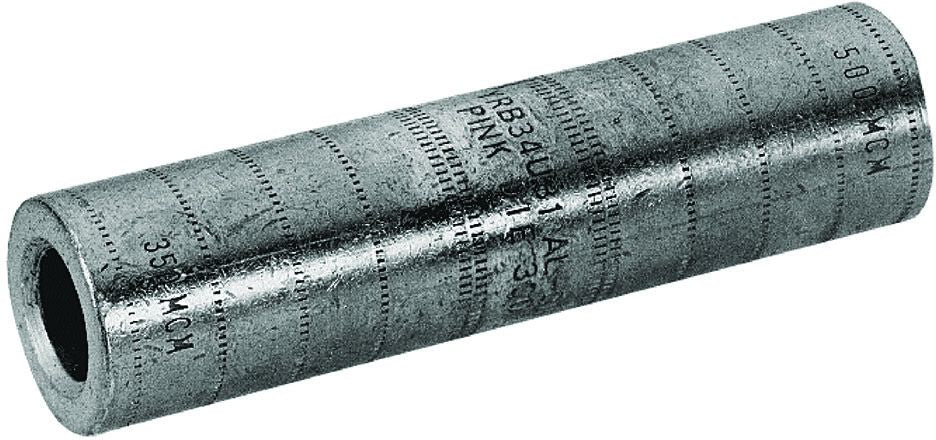

Burndy YRB36U34 Compression Reducing Splice

Out of stock
SKU: 185771
Regular price $207.27
OR

HYREDUCER Type YRB reducer butt splices are designed to splice two different conductor sizes and is UL Listed for aluminum to copper and aluminum to aluminum applications. The outside diameter is held constant to minimize installation dies and is factory prefilled with PENETROX oxide inhibitor.

Specifications:

Type: Reducing Splice
Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Side A Conductor Size: 600 KCMIL
Side B Conductor Size: 500 KCMIL

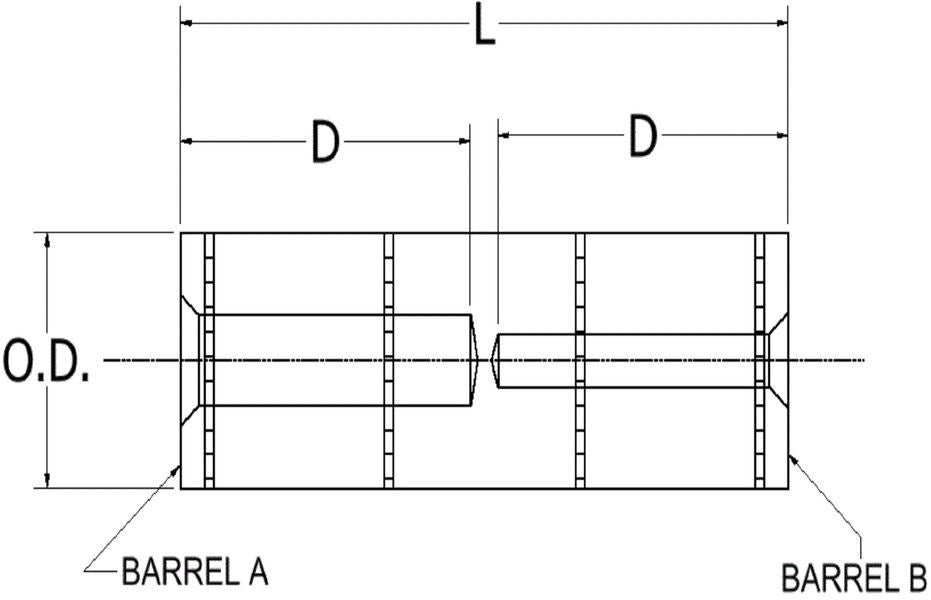

Outer Diameter: 1.46 Inch
Length: 5.57 Inch
Material: Electro Tin Plated Aluminum
Color: Yellow
Approval: UL
