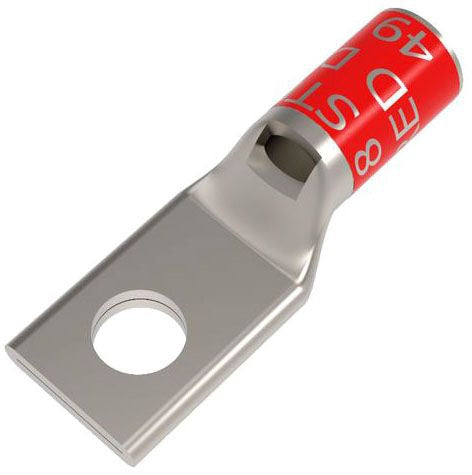

Burndy YA8CL3BOX Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 6 AWG Solid, 8 AWG Stranded (Code), 23 (Navy), 37/24 (DLO), 8 AWG (Flex)
Barrel Type: Standard, Straight, Non-Insulated
Barrel Length: 0.44 Inch
Pad Size: 0.58 Inch Width x 0.06 Inch Thickness
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Red
Die Index: 49
Material: Electro Tin Plated Copper
Overall Length: 1.51 Inch
Approval: UL, CSA
