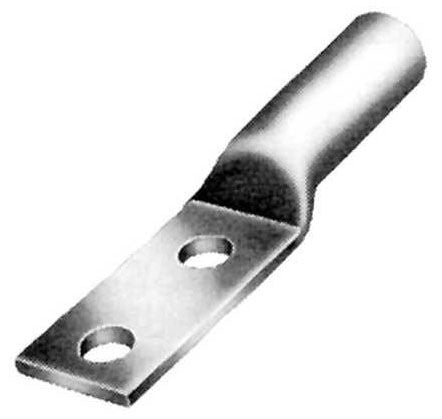

Burndy YA39A5N131TD12E Compression Terminal

Aluminum Terminals Accommodate Both Copper and Aluminum Wire; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Overlap Crimps Should Crimp the Entire Crimp Zone

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 500 to 900 KCMIL (Aluminum), 500 KCMIL Stranded (Copper)
Barrel Type: Straight
Barrel Length: 1.86 Inch
Pad Size: 1.31 Inch W x 0.31 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Pink
Die Index: 300
Material: Electro-Tin Plated Aluminum
Overall Length: 6.09 Inch
Approval: UL, CSA
