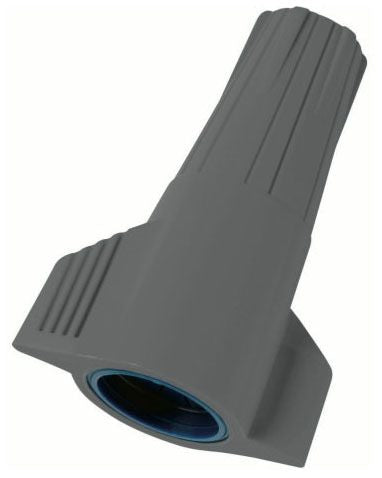

IDEAL Electrical 30-1066 Wire Connector

Out of stock
SKU: 187251
Regular price $4.85

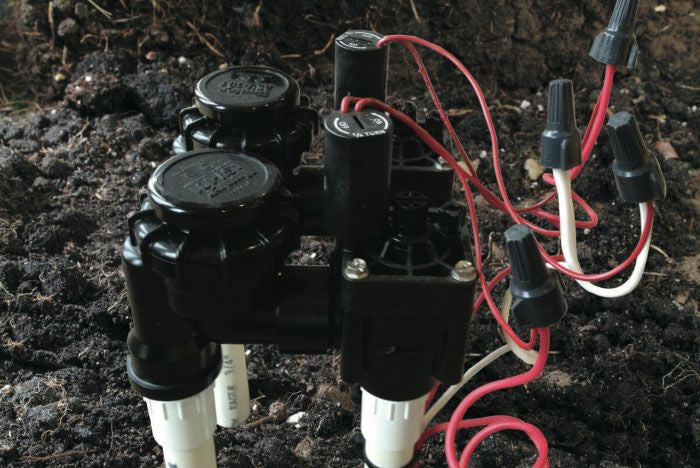

Underground Wire Connectors are Designed to Secure and Protect Wire Connections in a Wide Variety of Below-Grade, Wet Location and Direct Burial Applications. Quick and Easy Application Saves Time and Energy, Eliminating the Need for Heat Shrink, Resin-Packs and Multi-Step Corrosion Kits. with an Expanding, Live-Action Spring and Pre-Filled with a Silicone-Based Sealant, Underground Wire Connectors Make Fast, Secure and Long Lasting Connections. The Tough, Thermoplastic Shell Provides Extra Protection Against Accidental Impacts and the Deep Skirt Provides Superior Moisture Resistance, Making these Connectors UL Listed to 486G for Use in Damp, Wet or Direct Burial, Below-Grade Applications.


Voltage Rating: 600 Volt
Wire Type: Copper, Solid/Stranded
Wire Size: 14 to 6 AWG
Minimum Wire Combination Size: (3) #12
Maximum Wire Combination Size: (2) #6 with (1) #10
Spring Type: Expanding Live Action, Square Wire
Shell Material: Flame Retardant Thermoplastic Polyester
Color: Gray/Dark Blue
Temperature Rating: 105 Deg C
Standard Package: 50 per Box
Approval: UL 486C/D, CSA C22.2
