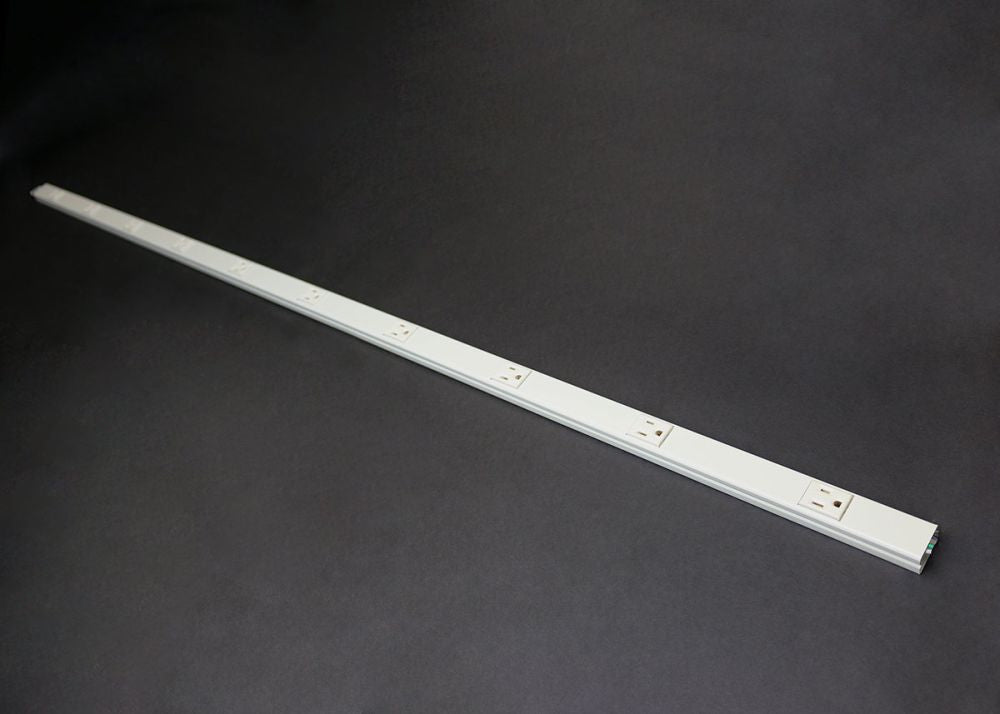

Wiremold G20GB306 Multi-Outlet System

  • Sale
  • Regular price $55.55
Shipping calculated at checkout.


Steel Raceway Provides Superior Strength for any Dry Location Installation; Compact, Low Profile Appearance Requires Minimal Space; Available in Ivory Scuffcoat or Gray Baked Enamel Finish; The Durable Scuffcoat Provides a Durable, Scratch-Resistant Finish While the Gray Baked Enamel Compliments the Decor or Can be Painted; Full Range of Fittings Provides a Complete Wiring Solution; Single-and-Dual-Gang Boxes; Wire Devices into the Raceway System or Protect a Plug mold Strip with a Surge or GFCI Device; Factory Wired Plug mold Sections Available in 3 Foot, 5 Foot and 6 Foot Lengths with 15 Amp Receptacles Installed in Cover; Ideal for Short Runs Requiring Additional Outlets in Electrically Busy Areas; Single, Alternating Circuit and Isolated Ground Receptacles; Meets Virtually any Job Requirement; Choice of Receptacle Spacing; Center Spacing Between Receptacles of 6 Inch, 9 Inch, 12 Inch and 18 Inch; Snap coil Harnesses of Prewired Receptacles in 48 Foot and 50 Foot; Eliminates Multiple Splicing, Speeding up Installation on Long Runs; Snap coil Harnesses offer a Choice of Receptacle Spacing; Center Spacing Between Receptacles of 12 Inch, 18 Inch and 30 Inch; Customization Available All Products Can be Modified to Accommodate Virtually any Application; RoHS Compliant

Specifications:

Type: 2-Piece
Number of Outlets: 6
Outlet Type: (6) Single Receptacle
Outlet Rating: 125 V 15 Ampere, NEMA 5-15R
Outlet Center Distance: 6 Inch
Outlet Configuration: 3-Wire 1-Circuit Ground
Length: 3 Ft
Width: 1-9/32 Inch
Height: 3/4 Inch
Material: Steel Raceway, Thermoplastic Receptacle
Finish: Gray Painted Enamel
Approval: UL (Canada and US)
