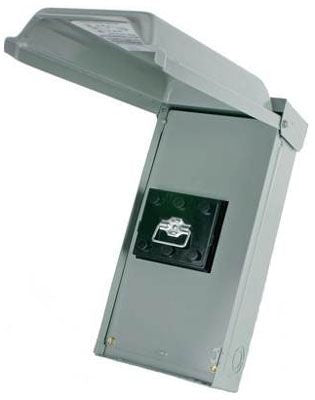

Midwest Electric Products U0353F Air Conditioner Disconnect Switch

  • Sale
  • Regular price $102.34
Shipping calculated at checkout.


Rugged Durability; NEMA 3R Weather Proof Enclosure; Noryl Thermoplastic Enclosure is Corrosion-Resistant and Extremely Durable, Giving Long Maintenance-Free Service; Metallic Models are Made of G90 Galvanized Steel for Superior Corrosion Protection and have a Durable Polyester Powder Coat Finish Which Resists Chipping and Fading; User Safety Padlock Provision on Door Helps Prevent Unauthorized Access; 3-Piece Construction that Opens up Mounting and Wiring Area; Numerous Knockouts Reduce Installation Time; Straight-In, Straight-Out Wiring Saves Time and Money

Specifications:

Type: Air Conditioner Disconnect
Voltage Rating: 240 Volt AC 3-Phase
Current Rating: 30 Amp
Power Rating: 3 to 7.5 HP
Fuse Provision: Fused Pull-Out
Enclosure: NEMA 3R
Enclosure Material: Metallic
Wire Size: 14 to 8 AWG Solid (Copper, Line/Load), 14 to 2 AWG Stranded (Copper, Line/Load), 12 to 8 AWG Solid (Aluminum, Line/Load), 12 to 2 AWG Stranded (Aluminum, Line/Load), 12 to 8 AWG Solid/12 to 2 AWG Stranded (Copper/Aluminum, Equipment Ground)
Size: 7-1/4 Inch Width x 5-3/16 Inch Depth x 14-3/8 Inch Height
Approval: UL (Canada and US)
