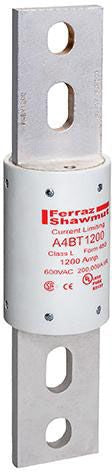

The high interrupting rating of A4BT current-limiting fuses is ideally suited for protecting mains, feeders and general circuits. The 10-second time-delay at 500% of fuse rating is ideal for large motors and other loads with a high inrush. A4BT fuses are suitable for DC applications up to 500VDC. An A4BT fuse can be applied to normal loads up to its full ampere rating to allow 100% rating of equipment, while also providing superior current-limiting ability.

Specifications:

Type: Class L
Characteristics: 10 Sec Time Delay (at 500 Percent Rated Load)
Voltage Rating: 600 VAC, 500 VDC
Current Rating: 1200 Ampere
Interrupting Rating: 200 Kiloampere (AC), 100 Kiloampere (DC)
Terminal Type: Blade
Diameter: 2-1/2 Inch
Length: 10-3/4 Inch
Approval: UL 248/248-10, CSA C22.2
