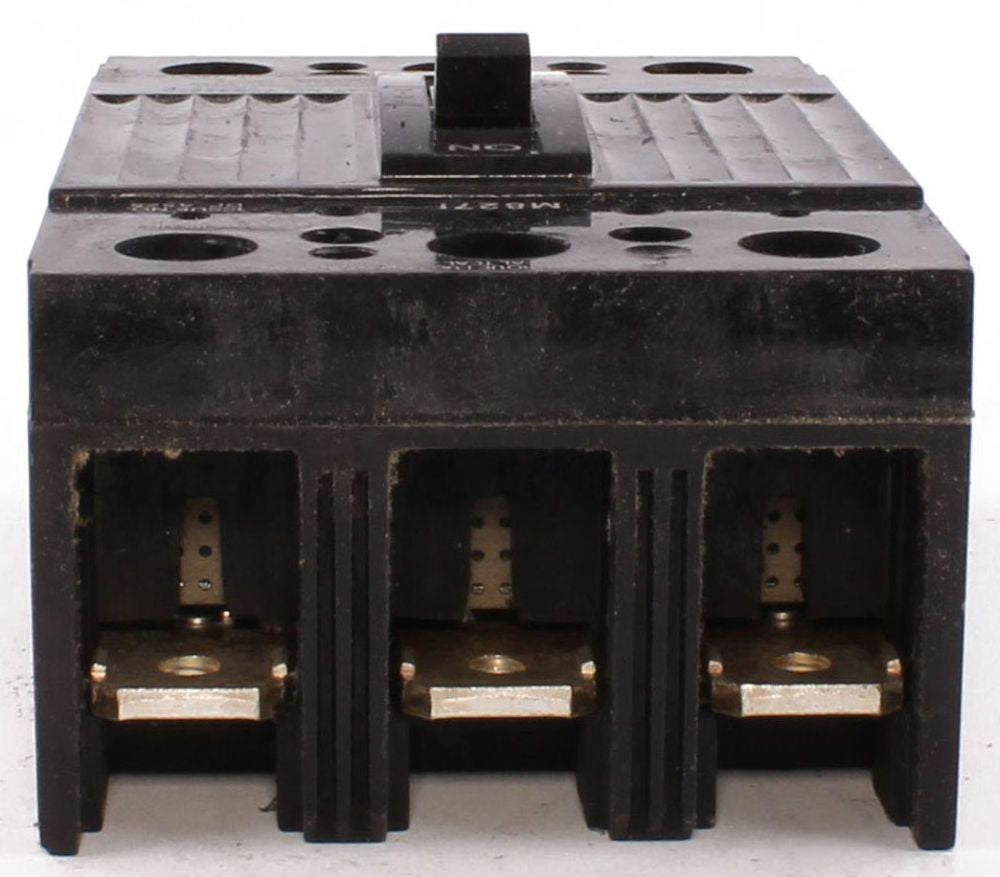

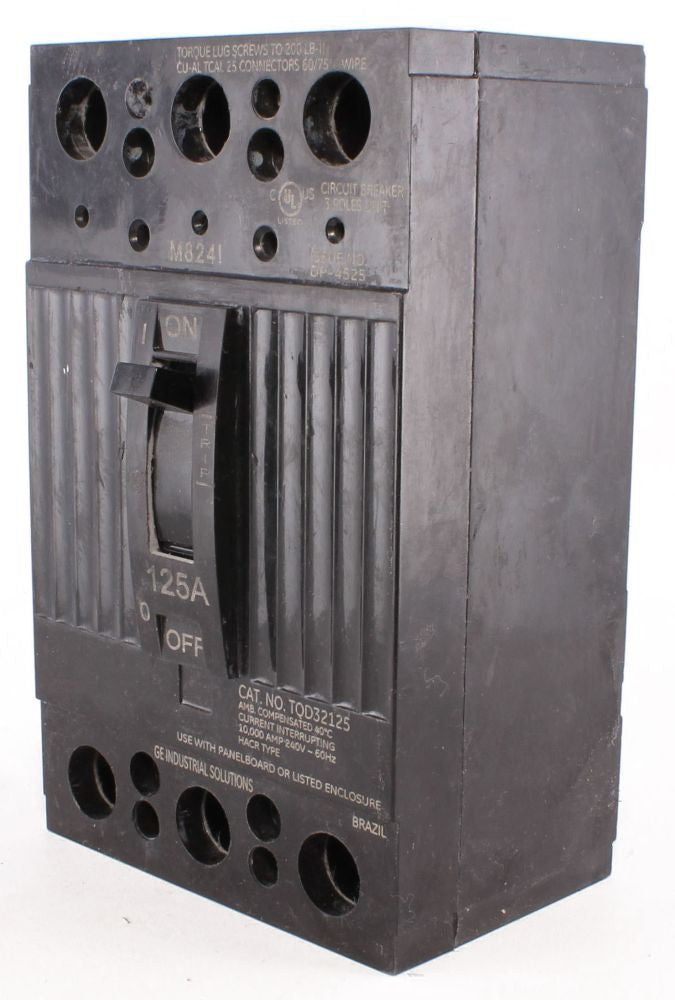

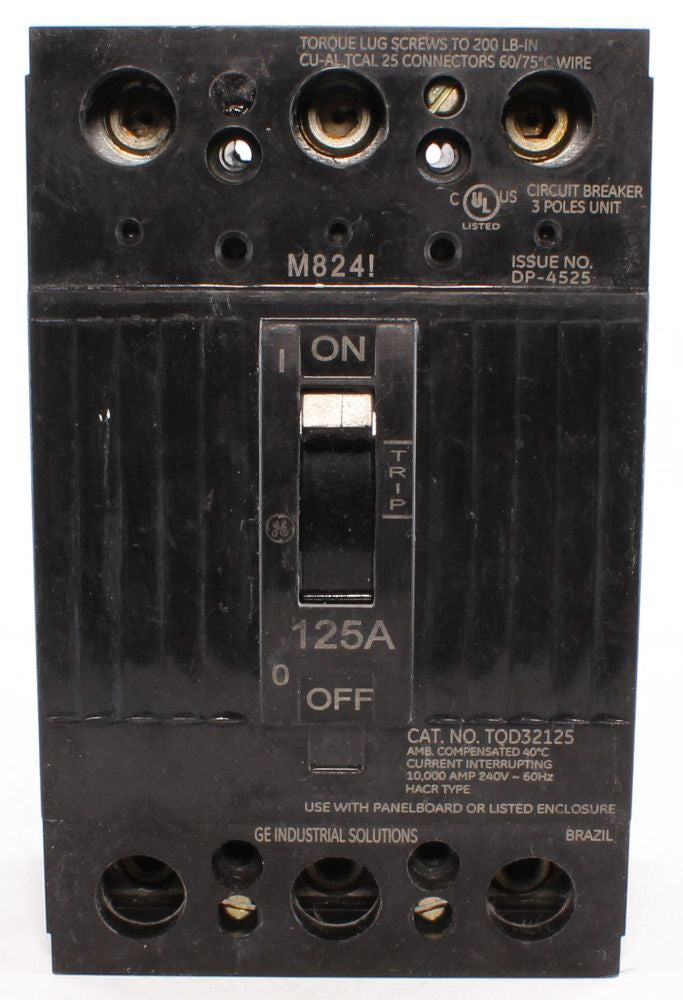

The TQD Line of Devices Include Thermal Magnetic Molded Case Circuit Breakers and Molded Case Switches; The Devices are Complete with Cu/Al Line and Load Lugs

Specifications:

Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
Frame Type: TQD
Voltage Rating: 240 Volt
Maximum AC Voltage Rating: 240 Volt
Current Rating: 125 Amp
Number of Poles: 3
Interrupting Rating: 10 Kiloamp

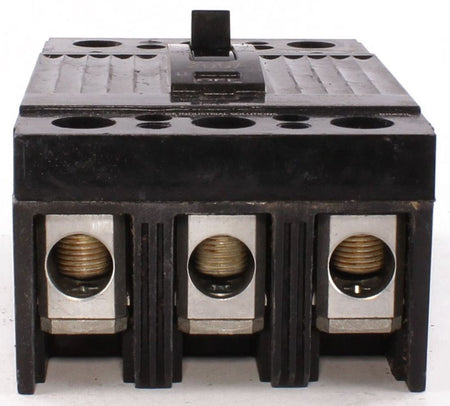

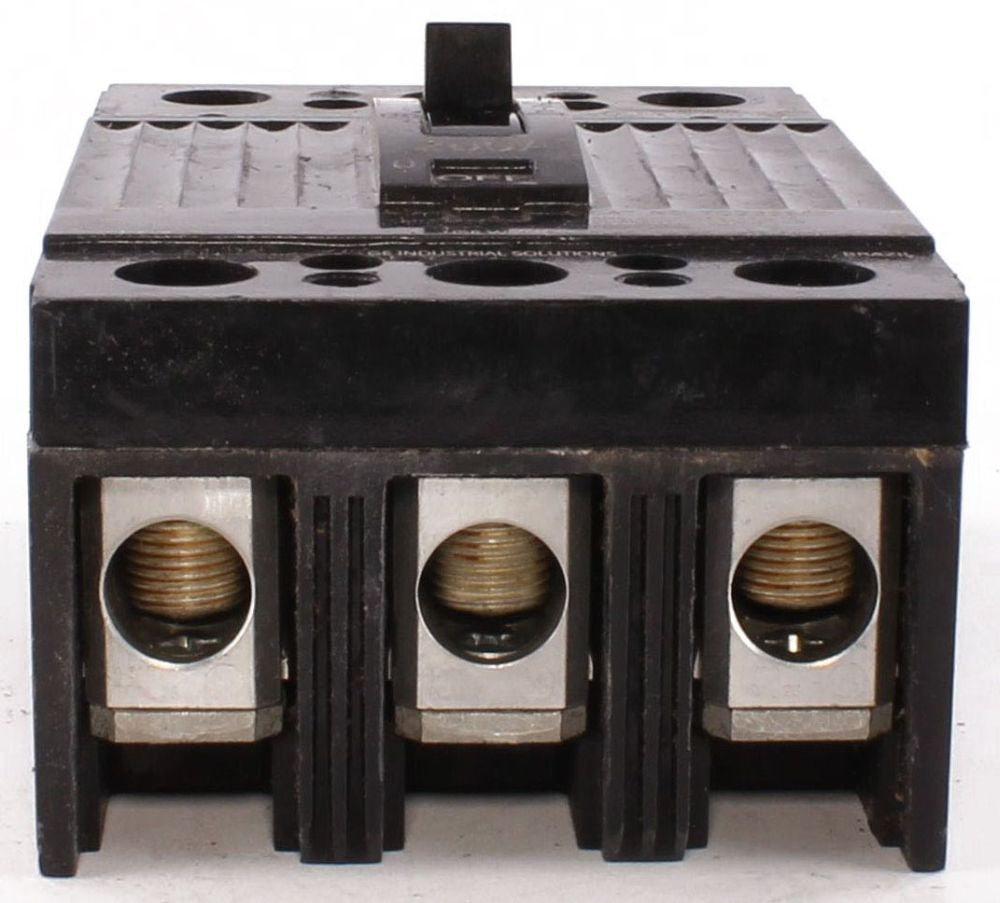

Terminal Type: Copper/Aluminum Line and Load Lug
Size: 4-1/8 Inch Width x 2-5/8 Inch Depth x 6-9/16 Inch Height
Approval: UL
