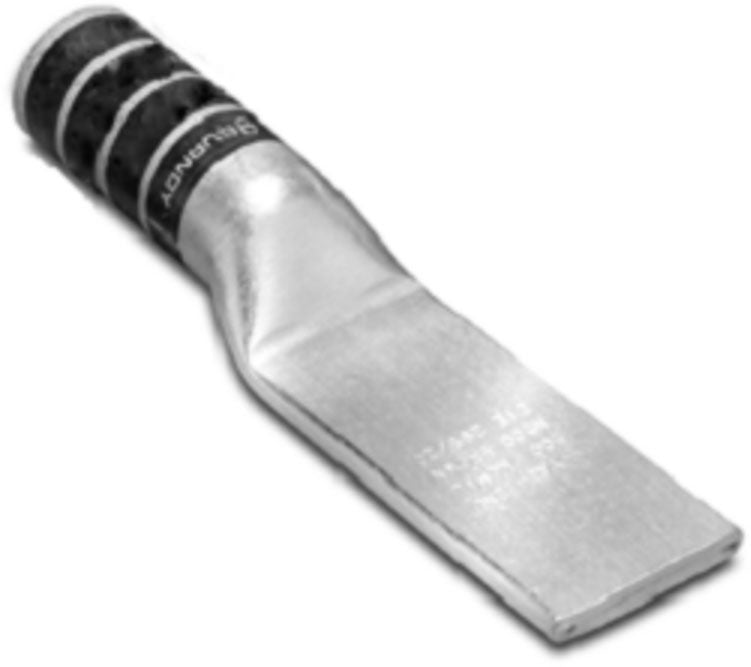

Burndy YA6C2NU Compression Cable Lug
Regular price
$11.42
Couldn't load pickup availability
The Blank Tongue line of copper code HYLUG terminals are designed to provide maximum field flexibility. Scored lines prevent the drill from walking when trying to drill in this area. . This innovative design allows the installer to customize the tongue drilling to fit their specific application while maintaining UL Listing and CSA Certification.
Specifications:
Conductor Material: Copper
Conductor Size: 6 AWG Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 1.12 Inch
Pad Size: 0.83 Inch W x 0.12 Inch Thk
Stud Size: #10
Color: Blue
Die Index: 7/374
Material: Electro-Tin Plated Copper
Overall Length: 4.4 Inch
Approval: UL 468A/468B, CSA
