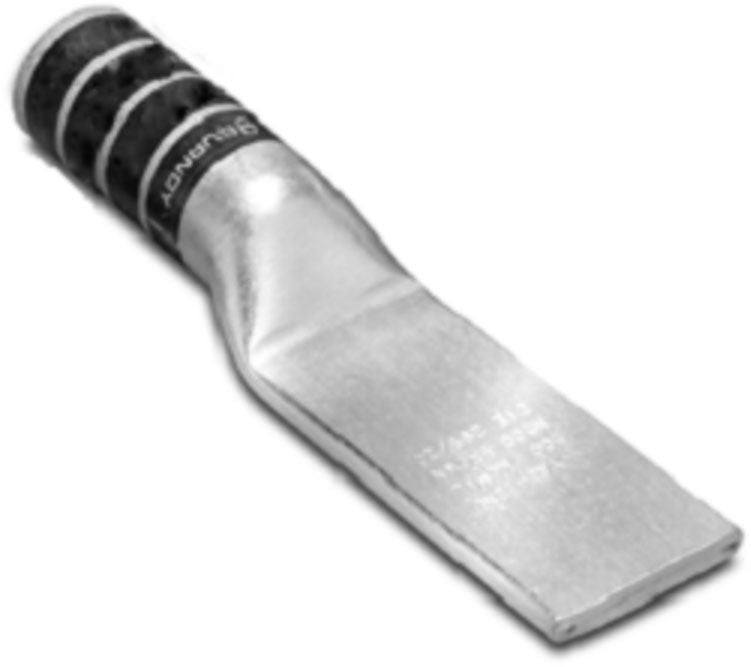

The Blank Tongue line of copper code HYLUG terminals are designed to provide maximum field flexibility. Scored lines prevent the drill from walking when trying to drill in this area. This innovative design allows the installer to customize the tongue drilling.

Specifications:

Conductor Material: Copper
Conductor Size: 2 AWG Solid/Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 1.25 Inch
Pad Size: 0.83 Inch W x 0.12 Inch Thk
Stud Size: 1/4 Inch
Color: Brown
Die Index: 10
Material: Electro-Tin Plated Copper
Overall Length: 4.64 Inch
Approval: UL 468A/468B, CSA
