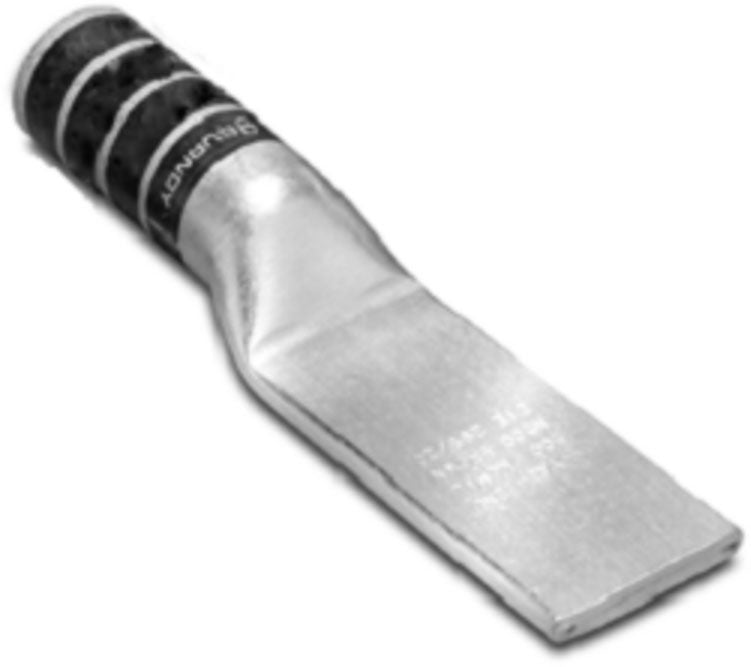

The Blank Tongue line of copper code HYLUG terminals are designed to provide maximum field flexibility. Scored lines prevent the drill from walking when trying to drill in this area. . This innovative design allows the installer to customize the tongue drilling to fit their specific application while maintaining UL Listing and CSA Certification.

Specifications:

Conductor Material: Copper
Conductor Size: 1 AWG Solid/Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 1.38 Inch
Pad Size: 0.83 Inch W x 0.12 Inch Thk
Stud Size: 1/4 Inch
Color: Green
Die Index: 11
Material: Electro-Tin Plated Seamless Copper
Overall Length: 4.82 Inch
Approval: UL 468A/468B, CSA
