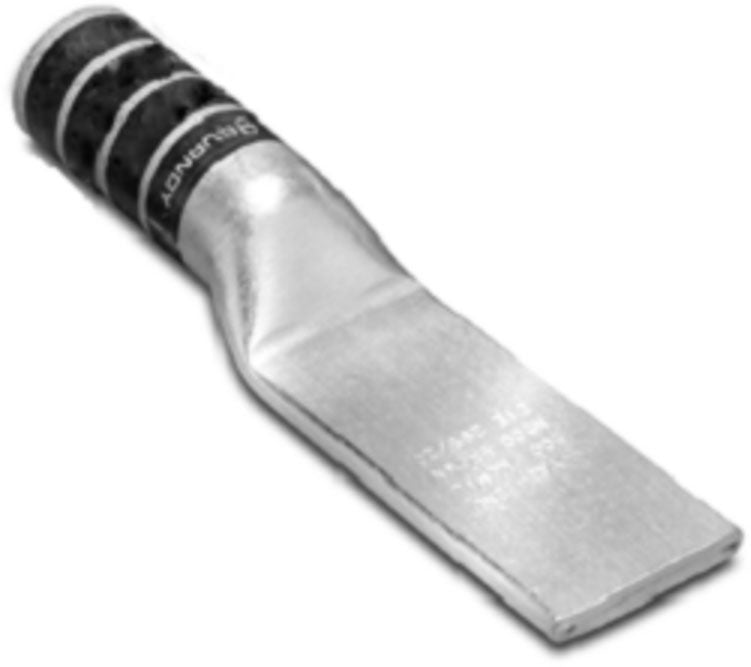

Burndy YA252NU Compression Cable Lug

The Blank Tongue Line of Copper Code HYLUG Terminals Are Designed to Provide Maximum Field Flexibility. Scored Lines Prevent the Drill from Walking When Trying to Drill in this Area. This Innovative Design Allows the Installer to Customize the Tongue Drilling to Fit their Specific Application. Manufactured from Seamless High Conductivity Electrolytic Copper Tubing with Heavy Duty Wall Thickness. Internally Beveled Barrel End. Proper Compression Systems Form a Highly Efficient Electrical Connection. Dimples Located at Each End of the Scored Line Represent the Location of the NEMA Standard Hole Spacing. Scored Line Locates the Center of the Tongue and Prevents the Drill from Walking When Trying to Drill in this Area. Offered in a Wide Range of Code Conductor Sizes.

Specifications:

Conductor Material: Copper
Conductor Size: 1/0 AWG Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 1.38 Inch
Pad Size: 0.83 Inch W x 0.11 Inch Thk
Stud Size: 1/4 Inch
Color: Pink
Die Index: 12/348
Material: Electro-Tin Plated Seamless Copper
Overall Length: 4.81 Inch
Approval: UL 468A/468B, CSA
